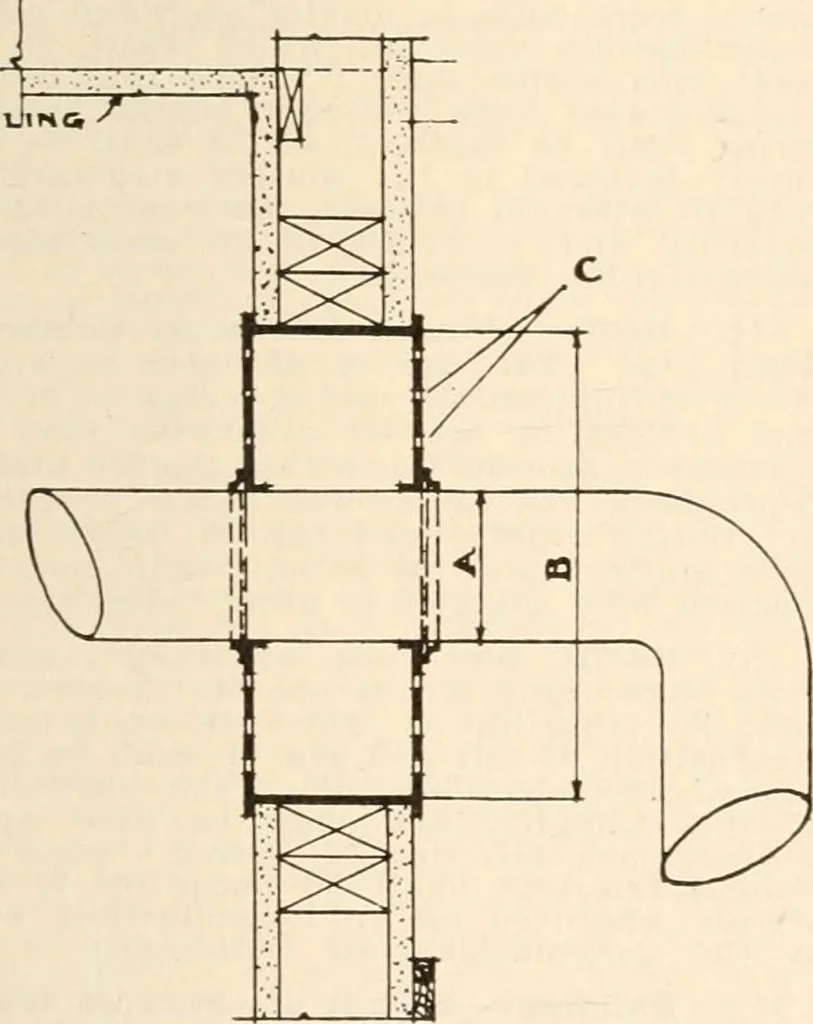

an four inches in thickness, andthe burnt fire-clay flue lining shall benot less than three-fourths inches in thick-ness, and built as herein described. Thewalls forming smoke flues of more than onehundred and forty-four square inches areaand not more than three hundred squareinches area shall be… … JtCTlON Pig-. 38. SMOKE PIPES PASSING THROUGH PARTITIONSAND WOOD WORK AROUND. Section 802. (A) Diameter of smoke pipe. 6 or less. (B) Diameter of thimble required S greater thandiameter of smoke pipe. (C) Ventilation lioles required. in combination with burnt clay flue tilelining, it sjiall be not…
