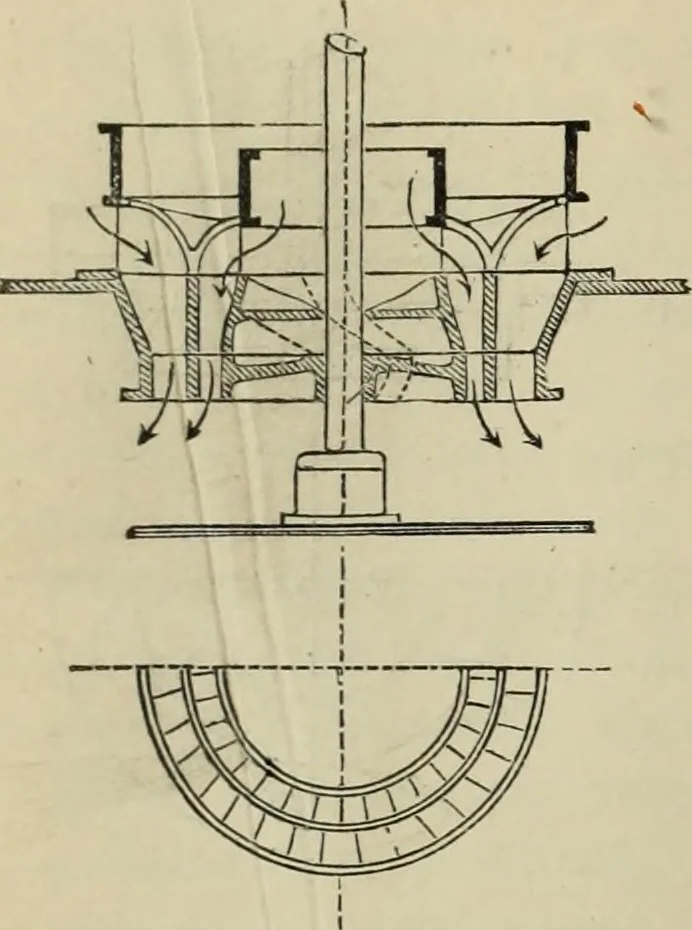

^g- v. Fig. VI. These conditions of imperfect action of the gate as usually appliedto turbine wheels have led me to adopt a plan of gate for the Jonvalturbine, which is here represented. It will be noticed. Fig. VII,that the division of the water, in halves or in thirds, is com- 288 Chemistry,… … plete both in leading plates and in themovable wheel, and the streams do notmeet until their duty on the turbine isperformed. The water thus gives itsproportionate pressure on the wheel asin enters it and as it leaves it. It ishardly necessary to say that carefulexperiments halve proved the…
