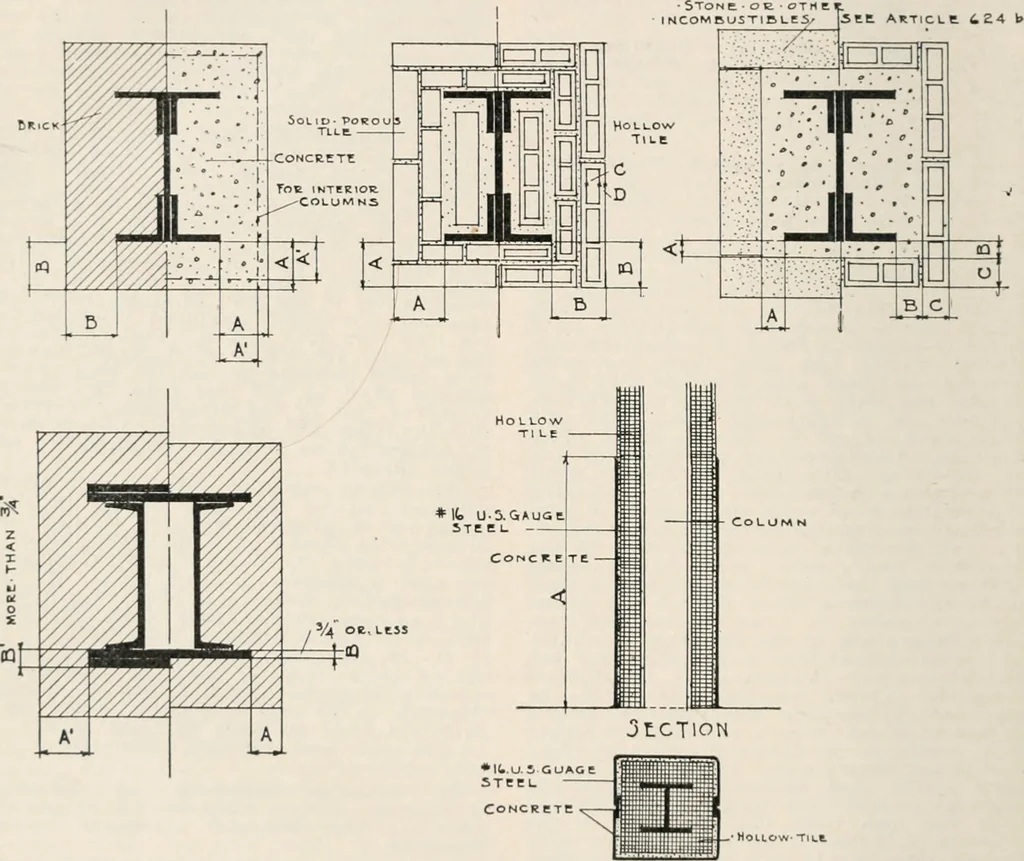

other open columns shall be completely filled with ap-proved cement concrete. 840. ColTunns—Wiring- Clay Tile On.) (a) Burnt clay tile column covering- shallbe secured by winding wire around thecolumns after the tile has all been setaround such columns. The wire shall besecurely wound around tile… … PLAN Fig. 43. Fig. 44. IUOTHCTIOX OF EXTKUIOR COLUMNS.Section 838. Figs. 40, 41, 42. Hcquiremcnt for protection ofcolumns of biillillDS e.xcei-illiig 00 ft. height fromexK-riiiil thnriKc; of ti-mperalure unil fire. Kii?. 40. (A) 4 conerete required. (B) 4 brick required. Kip. 41. (A) 4 solid porous…
