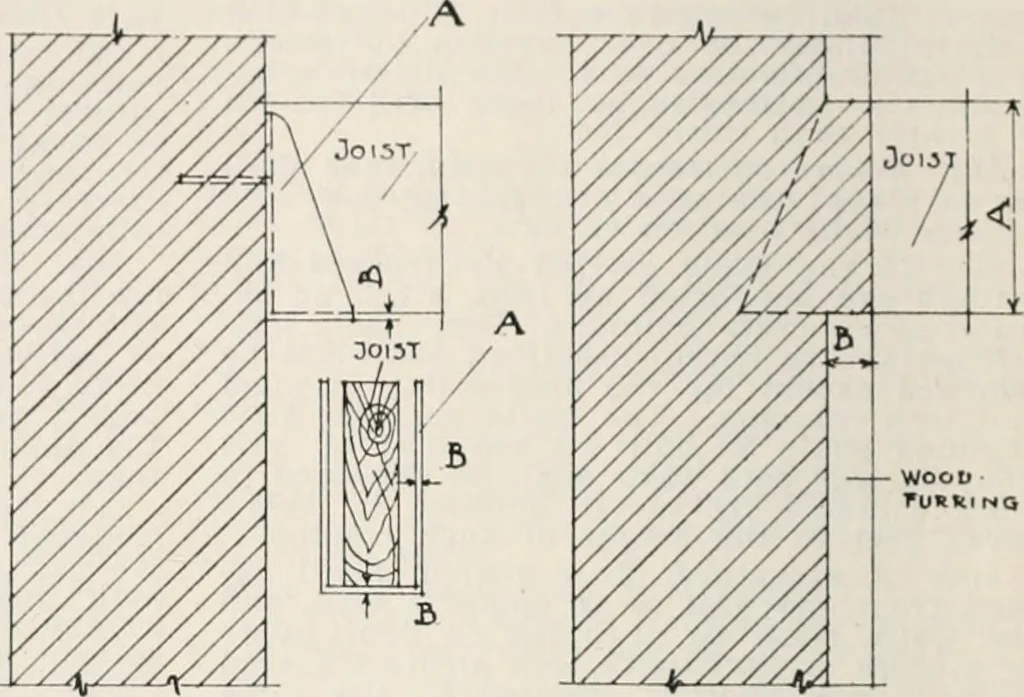

rig-. 19. Fig. 20. Fig. 21. LEDGES—JOIST SUPPORTS.Section 733a, b, c. Fig. 19 (A) Corbelling to be not less than four Fig. 20 (A) Metal joist hanger allowable, courses of brick. (B) Vi iuch metal required. (B) Upper course shall project four inches. (C) The joists shall be protected from top to…
