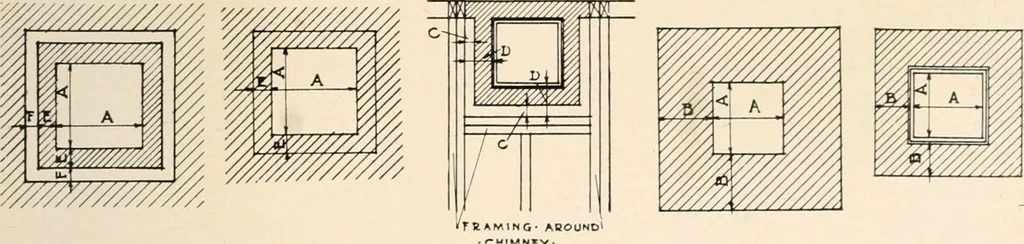

ll be built independent of the sur-rounding brick work and shall be free toexpand or contract. 565. Metal Chimneys in Buildings of Or-dinary Slow-Burning or Mill Construction.) Interior stacks or smoke flues of metalshall not be used in buildings of ordinaryor slow burning or mill construction,… … Pig-. 33. Fig-. 34. Pig-. 35. Pig-. 36. Fig-. 37. CHIMNEYS—IXSULATIXG CAVITIES WHERE REQUIRED.Section 564. Fij,s. 33, 34 (A) Area of flue. (E) Insulating lining. (F) Insulating cavity. Explanation: If A is more than 400 sq. in. aninsulating lining (E) Is required—(see Sec. 564 forfurtlier defails).…
