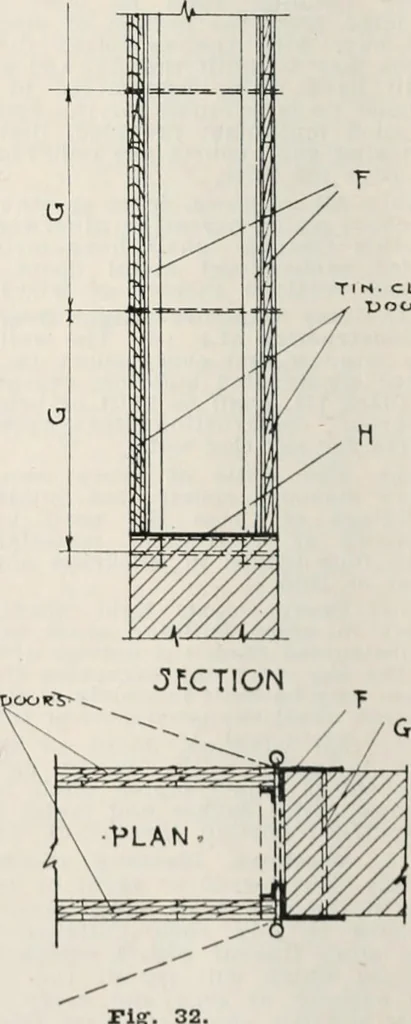

l plates may beomitted. (g) When tin-clad doors are used theyshall be made of three thicknesses of thir-teen-sixteenths Inch seasoned, non-resinouswood, of good sound quality, free from sapand large or loose knots, tongued andgrooved, dressed on both sides and not ex-ceeding eight inches in width.… … Fig Section 789g. Fig. 82. (II) % Inch iron or steel sill.IV) :i x r. x % I. riveted to Iron sill.(G) % Inch boll IS ... <•. Exception: sin plate* mny i m It ted wltei nre of concrete construction. 248 Miscellaneous Provision* leave smooth surfaces. The woodwork shallbe thoroughly covered with…
