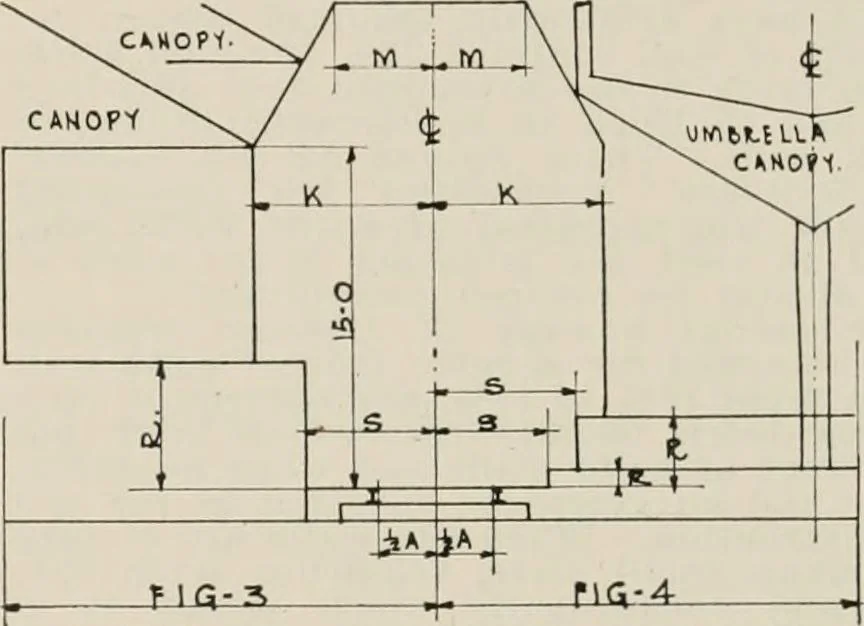

Buildingfs and Miscellaneous Struc-tures adjacent to Main Tracks, L = 21 6,K = 8 0; Adjacent to Subsidiary PassengerTracks L.= 21 6, K = 7 6; Tracks en-tering buildings Li:^car clearance (see dia-gram above for estimate), K = 7 0. Structures adjacent to Subsidiary FreightTracks except as otherwise… … as follows: L = 21 3, M = 4 2,0, P = 4 0, Q = 5 0. Bridges span-ning Main Tracks or Subsidiary FreightTracks Fig. 1. L = 21 6. K = 8 0. Tig. 3. High Freight Platforms R = not toexceed 5 8, 8 = not less than 5 8 exceptwhen such platforms have S = not less than8 0. Pig. 4. High Passenger Platforms on…
