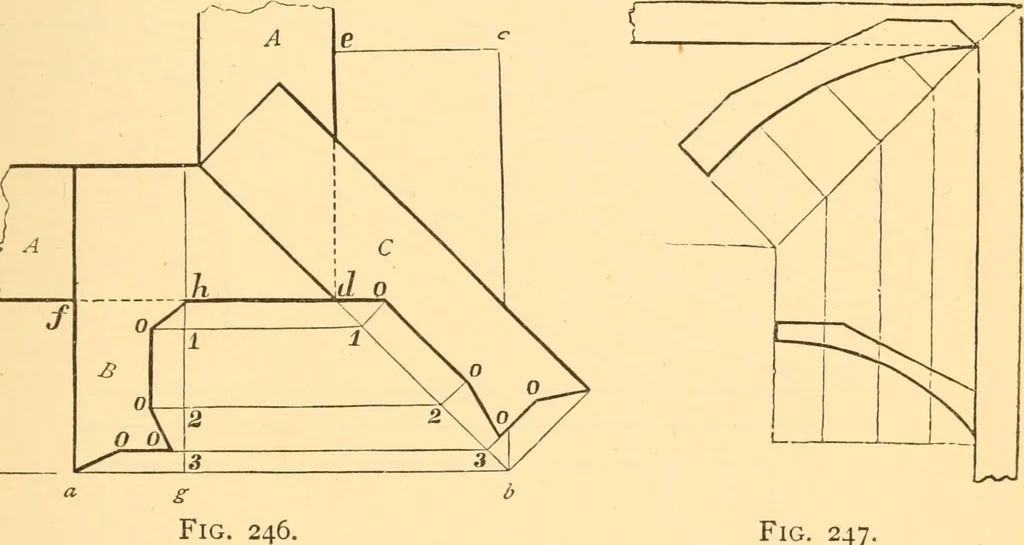

ction of the differentmembers of the given cornice to « 6* parallel Vo od\ fromthese divisions on the line a o draw lines to the line o cparallel \.o ac\ from the divisions on the line of draw linesto the line oe parallel to the line/r; then the divisions onthe lines o e and o c will indicate the… … Fig. 247. be given, we can obtain the same result b} a different pro-cess. Thus: upon d?, with (?<: for radius, describe the quad-rant cb\ upon 0, with 0 a for radius, describe the quadrantad\ join d and b\ from /draw fc parallel to db\ then ocwill be the proper height for the proposed cornice,…
