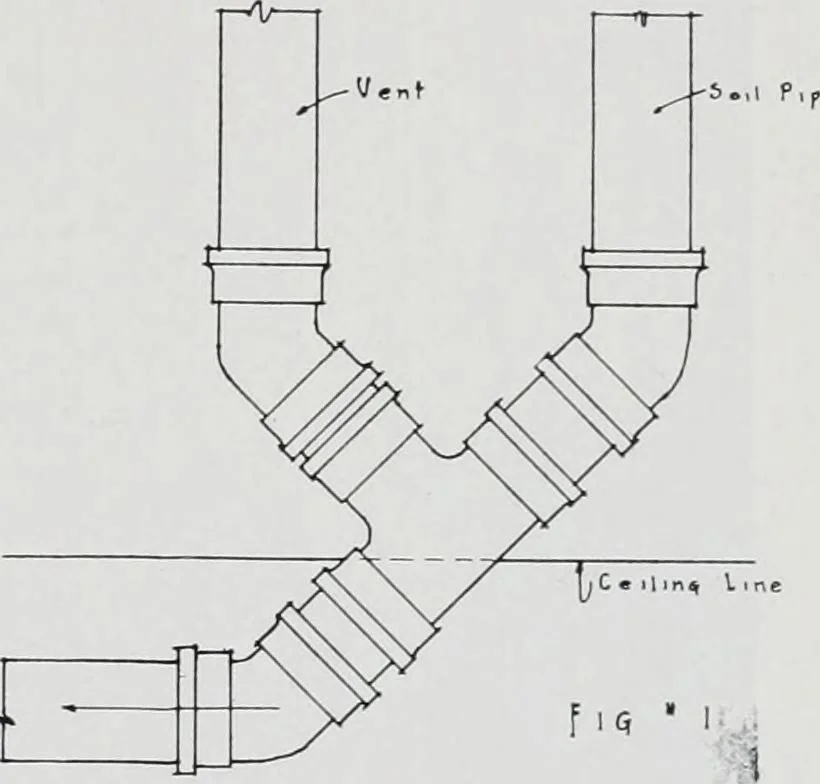

See article on Plumbing Designin Tall Buildings, Page 517, 1922 Year Book. Study of the reference to a full size crossconnection between soil or waste line andvent is well worth while in connection withthe above tables. Good practice would not permit the instal-lation of a vertical waste carrier… … Method of connecting a main vent line intothe bottom of a soil or waste line in a tallbuilding to prevent excessive air com-pression. The falling column of water hugs the bot-tom of the 45° angle extension and allowsthe air to separate from the water and freelyescape up the vent line. Experiments…
