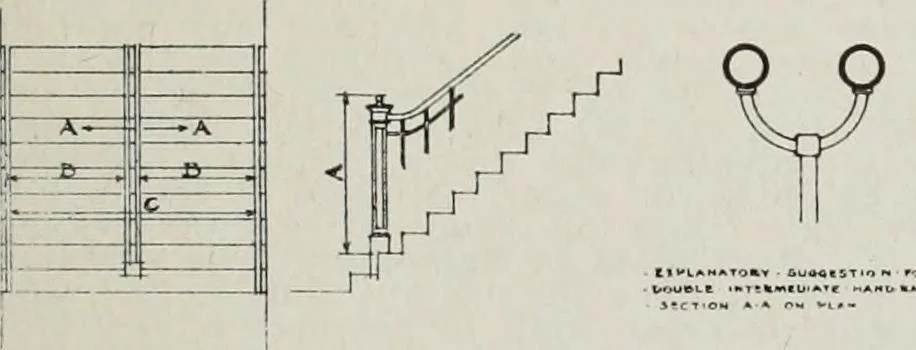

Tig. 1 STAIRWAYS. Sections 2602.01, 2602.02, 2602.03. Fig. 1 (A) Shows measurement of stairways wherehand rails are required on each side. (B) Shows measurement of platform. Fig. 2. Measurement of stairway where hand rail isrequired on one side only. … Pig-. 4 Pig. 5 Fig. 4. Over 70 (for exceptions see ordinance)wide stairways (C) shall have double intermediate handrails. In plan (Fig. Sec. AA). (B) Measurement of stairs where double intermedi-ate hand rails occur. (C) Measurement of stairs where double intermedi-ate hand rails do not occur, as…
