Handbook for carpet measurers, cutters and salesmen : including topics of general interest to the trade with illustrations and diagrams (1905)
Lind, John W. (John Wilhelm), b. 1861 · New York : George Lyndoe · leaf 55

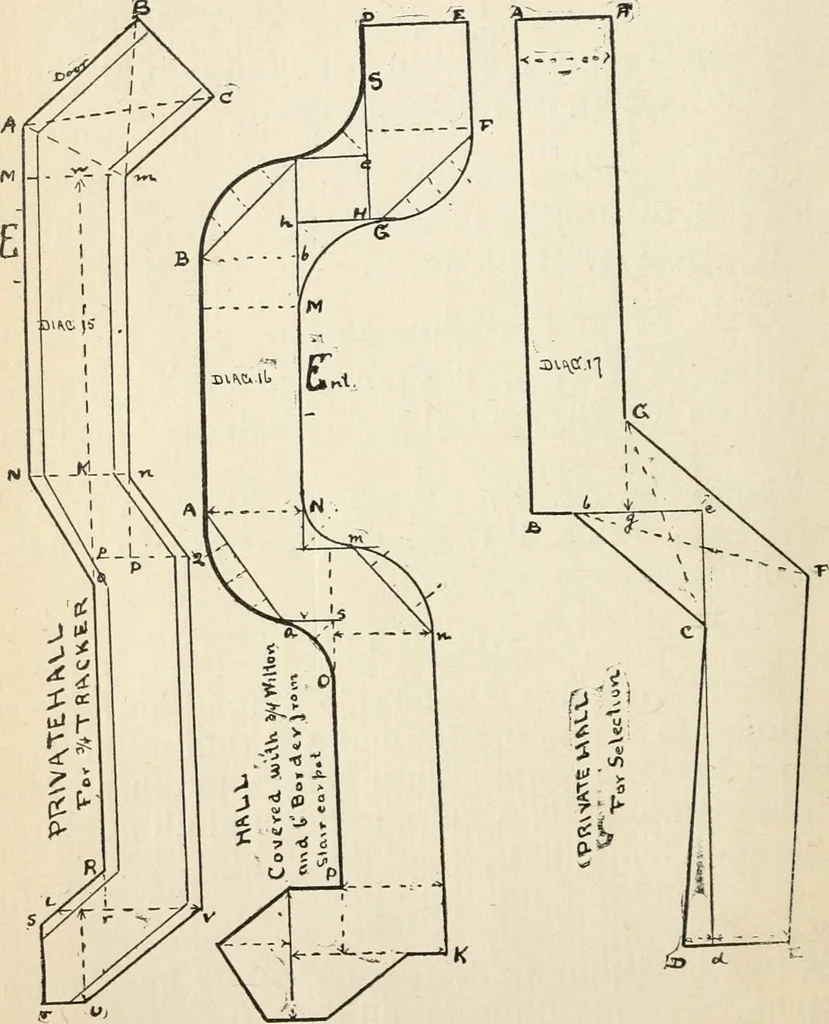

line from S to H parallel to EF, and from H per-pendicular to it, prolong MN and OP both ways, froma and m draw lines perpendicular to them, measure acrosscurves, offsets, straight walls, angles, and all measuresas shown by dotted lines. diagram 17 Extend Bb to any point as c, with chalk line from… … DIAGRAMS 15, 16, AND 17. DIAGRAMS AND MKASUREMEXTS 39 DIAGRAM 18 Chalk line from A to B across swell, bisect andmeasure depth of it to W; measure from each end of this line A and B to wall atstair C and I); measurewidth of hall from wall tobaluster. DIAGRAM 19 Prolong AB to 0; bisectBO with DE;…
Carpets
