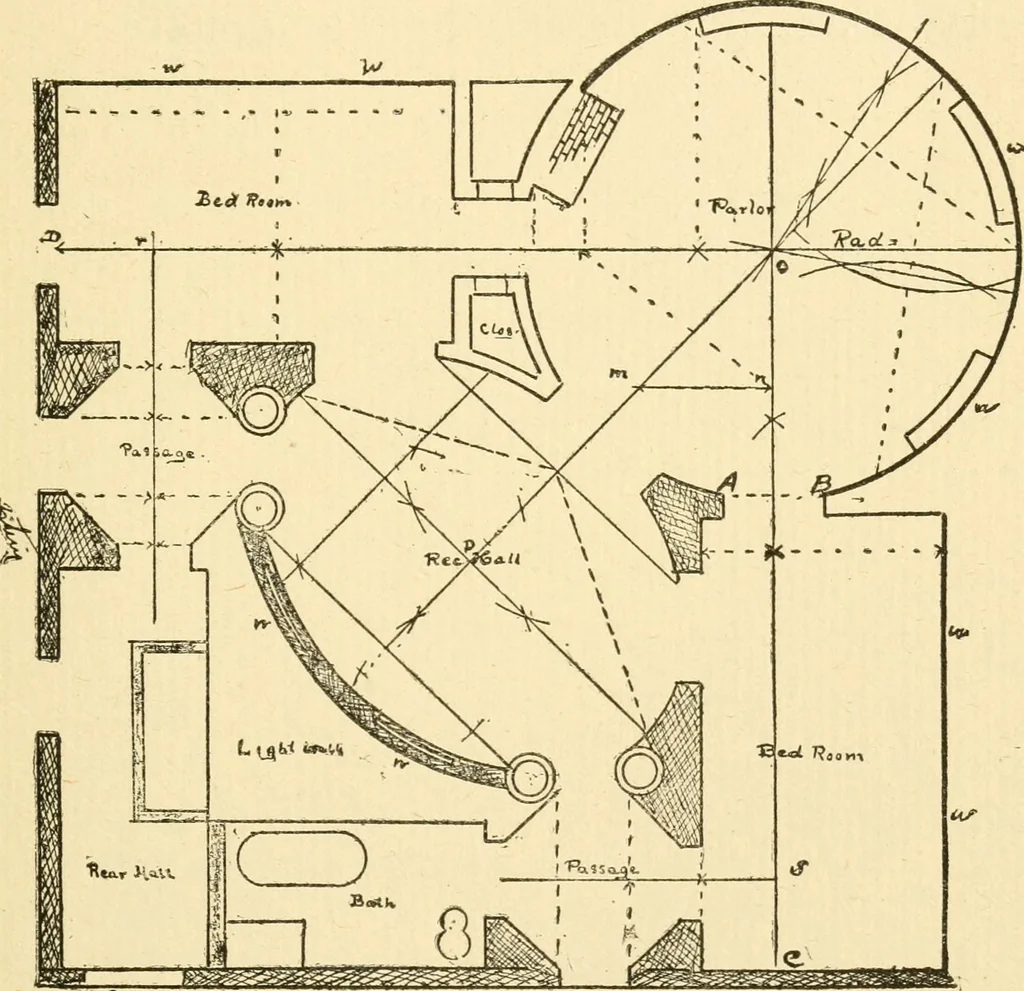

it is necessaryto locate the rooms exactly as well as give correct meas-ures. Start at any prominent part, say in the parlor, atthe door AB erect a line perpendicular to AB, extend asfar as it will go on both sides; from this line snap DO DIAGRAMS AND MEASUREMENTS 53 at right angles thereto, also… … e~± DIAGRAM 47. transfer axis if the room is an ellipse, from r and s on DOand OC erect other perpendicular lines running to pas-sages. Find center of circular room by any of the threemethods, locate mantel and window seats as in Diag. 45, 54 CARPET-MENS MANUAL. by offsets, or as in Diag. 39,…
