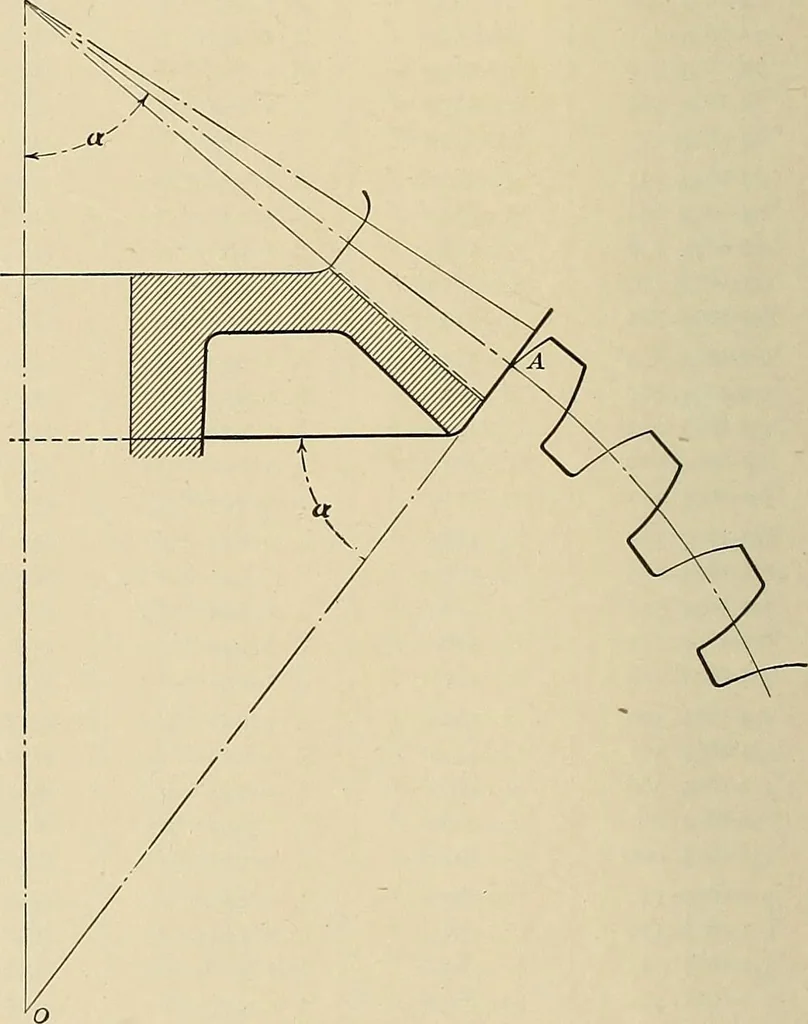

r^_ Fig. 4.—Needed shop dimensions of bevel gears. … Fig. 5.—Profiles of bevel gear teeth. Third, using the equivalent face width and number of teeth,follow the instructions for Mr. Bruces chart for the strength of spur-gear teeth. Fig. 7 of the section on Spur Gears. If desired, the Lewis factor y may be found by tracing downwardto the second curve…
