Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 366

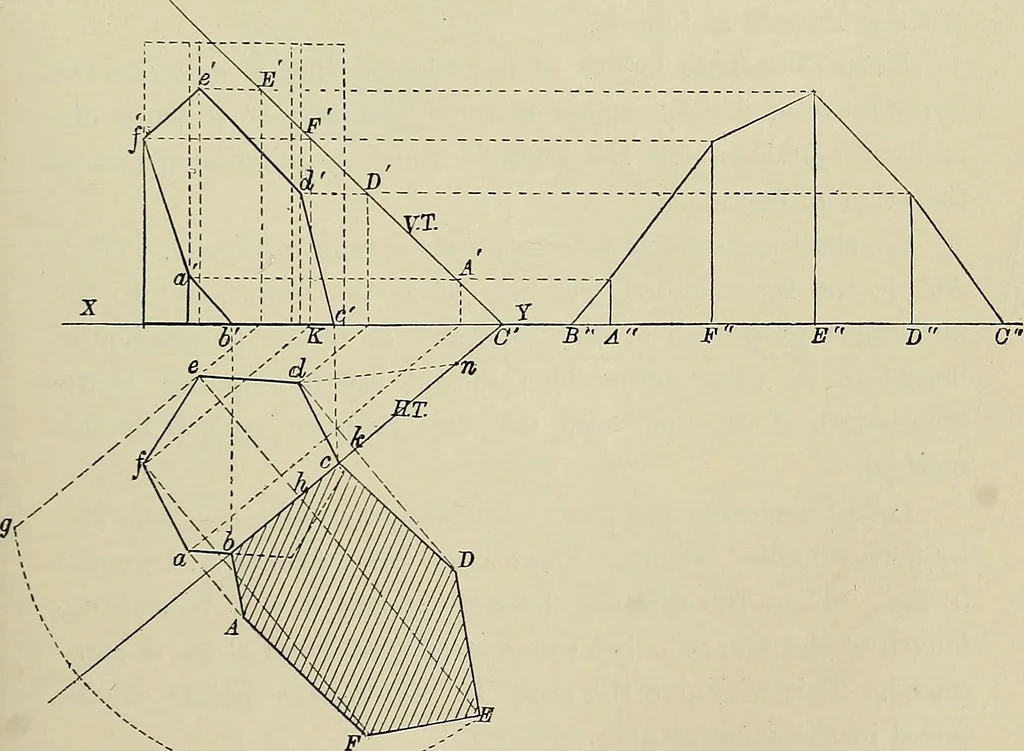

on withthe other points, and join them. Pkoblem 128. Project a regular hexagonal prism 9| long, ivith 3 J sides, standingon its base on the H.P., with one of its faces inclined to theV.P. at an angle of 58°. Intersect the prism hy a planeinclined at an angle of 55° with the H.P. a,nd 46° loith… … Find the traces of the cutting plane (Prob. 83 or 84). 346 SOLID GEOMETRY chap. Draw lines from the points of the plan parallel to the H.T.till they meet XY, then draw perpendiculars to XY till theymeet the V.T. in the points C, A, D, Y, E. From these pointsdraw horizontal lines till they meet…
Geometrical drawing
