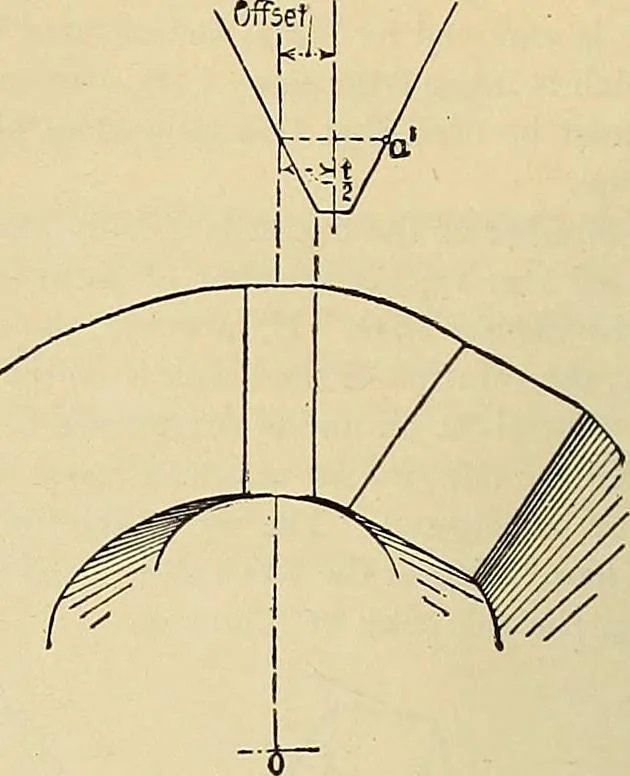

Fig. Fig. 21.Figs. 20 to 22.—The parallel depth method. Fig. 22. Hence, if the cutter be offset by one-half its pitch thickness, bringingthe point a to the center line of the blank, the pitch line ac, as shownin Fig. 21 will be radial. With the parts so set, one cut around is
