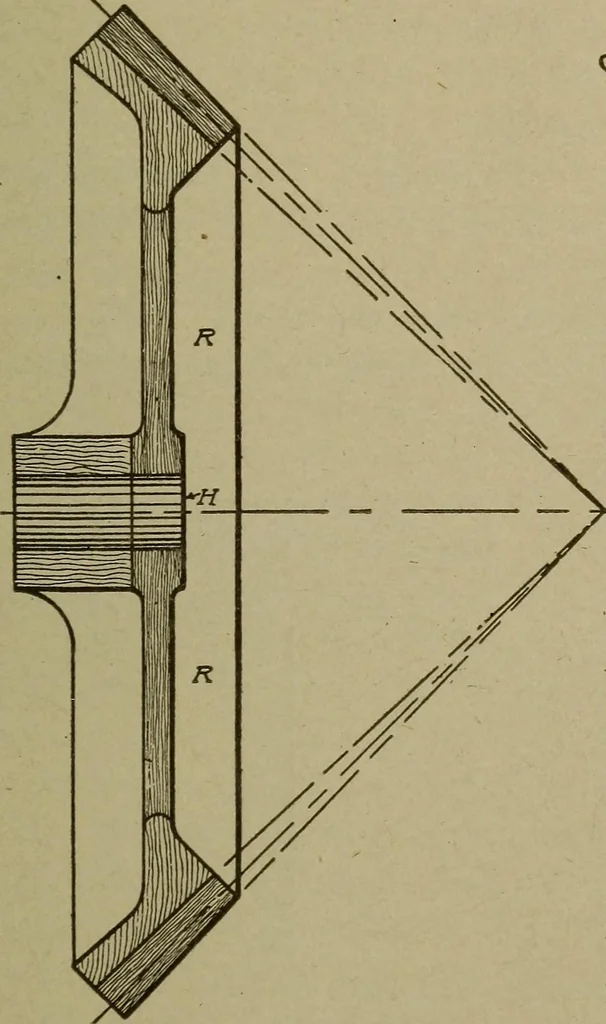

Fig. 263. Part of Arm Pattern forMiter Gear PATTERN MAKING 149 and at right angles to the edge a. Lay the edge b of A againstanother board B, of the same thickness, and continue the line c onthis board, as shown by the dotted line. With the dividers seton the extended line c on the board B, and…
