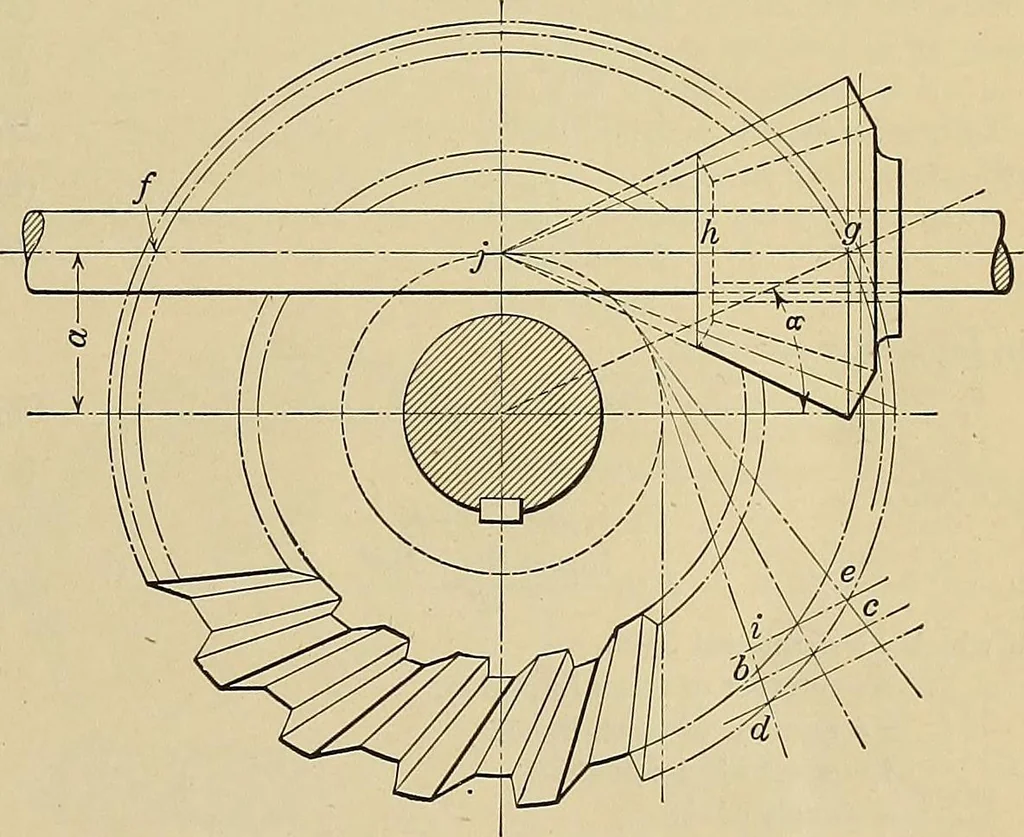

the oblique teeth being applied to thegear only. (6) Those in which the teeth of both gear and pinionare cut askew. Of these types (a) is the more common and is illus-trated in Fig. 25 in which dimension a is the offset of the pinionshaft. The pinion differs in no way from a regular bevel gear… … Fig. 25.—Skew bevel gears of type a. The teeth of the gear which are actually in mesh with those of thepinion converge toward the same apex, the others converging topoints which lie on a circle having a radius equal to the offset of thepinion shaft to which circle the tooth profiles prolonged are…
