Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 182

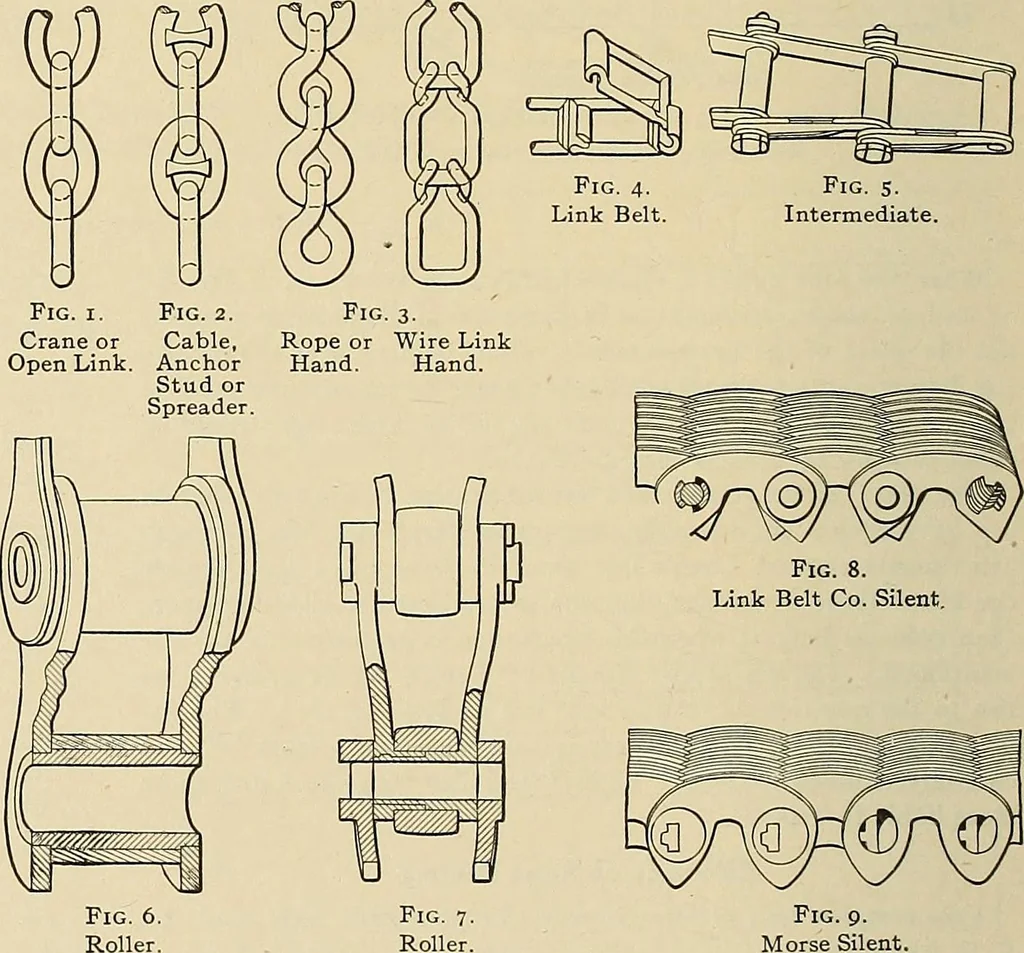

e of links. The hand-made varies a little in pitch oflinks and the links will be found to vary considerably in shape,especially in the weld, which is at the end of the link. When it is intended to use a hand-made chain, the sprocket castingto be used is sent to the chainmaker who makes the chain… … Fig. 7-Roller. Figs, i to g.—Leading types of chains. Fig. 9-Morse Silent. Size, ins. Safe load, lbs. Size, ins. Safe load, lbs. i 30s li I0,S2S 1 690 If 12,350 i 1,230 ii 14.32s 1 1,920 If i6,4SO \ 2,76s 2 18,715 I 4.925 2i 22,440 n 5.92s 2j 27,70s i\ 7.310 2| 33.530 If 8,830 3 39,89s See also the…
Machine design
