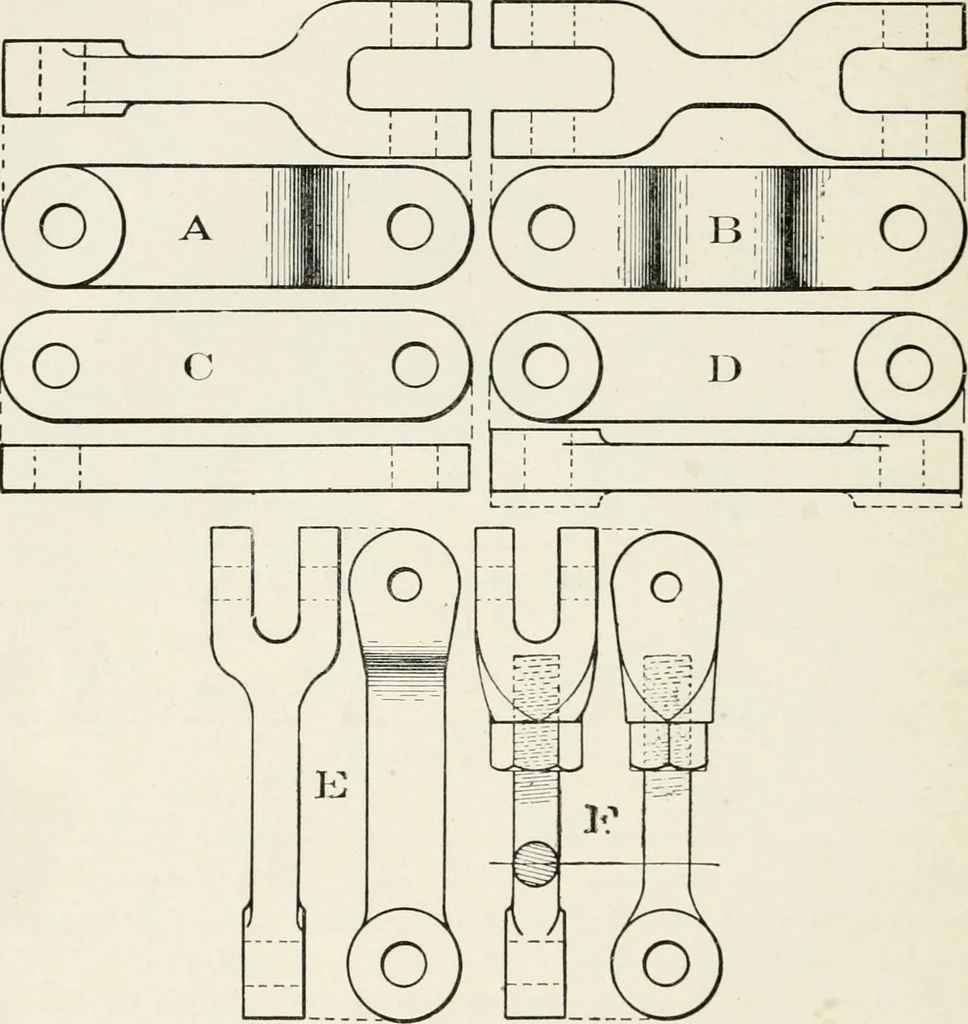

istthis stress. Fig. 114 shows other methods of designing the toggle. Concerning the crushing of the pin see Art. 128. 250 MACHINE DESIGN 133. Fig. 115 gives some shapes of toggle members. A, B, C,and D are usual shapes of the horizontal members. A and Bhave split ends and are necessarily hard to… … Fig. 115. 134. Die Heads.—The sliding head receives the thrust W^from the toggle and moves along the top of the bed toward orfrom the stationary head. It must be a good fit to the bed tophaving a free sliding contact but no side motion. The stationaryhead must be planned for longitudinal adjustment…
