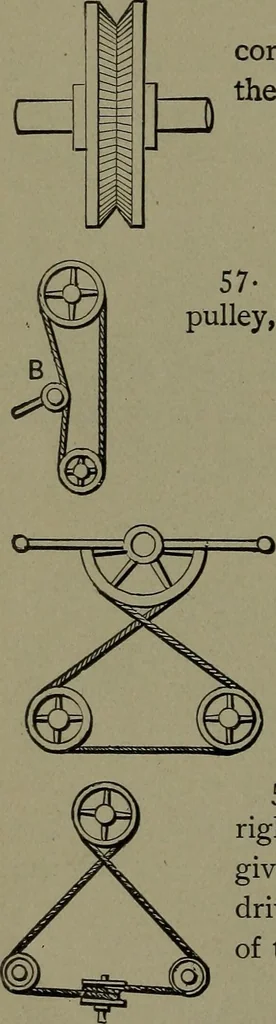

30 TRANSMISSION OF POWER; ^ 7^ 55. ROPE SPROCKET WHEEL, several modi,fications of which are in use in old-style hoists. _J … 56. r-GROOVED ROPE PULLEY, havingcorrugated groove faces to increase the adhesion ofthe rope. 57. ROPE TRANSMISSION, with a tighteningpulley, B. 58. VIBRATORY MOTION to two shafts,transmitted from the rocking of a lever armand sector.
