Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 203

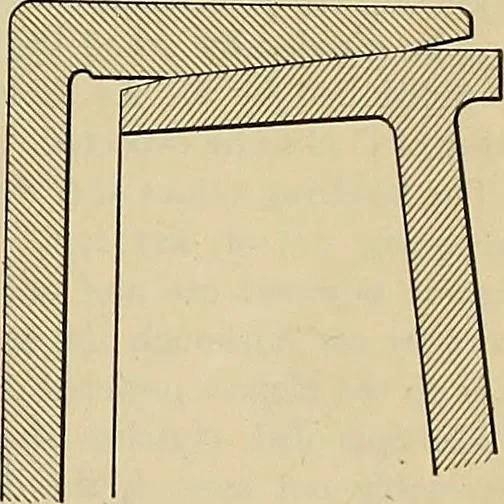

Fig. 3.—Incorrect constructionof cone clutch. Fig. 4.—Correct constructionof cone clutch. A defective construction of cone clutch is illustrated in Fig. 3 whichshows the effect of wear. The correct construction is shown in Fig.4. The extension of the male and female ends are at an equal anglefrom…
Machine design
