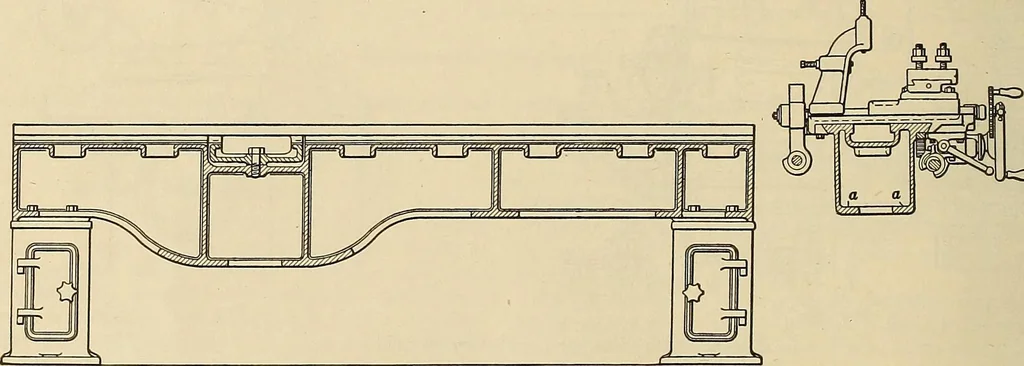

Fig. 12.Figs, i i to 13.—Examples of the tubular torsion member. Fig. 15. Fig. 17. Figs. 15 to 17.—Examples of the division of functions. … Lfco Fig. 14.—Example of a compromise tubular torsion member. manent the lapping of the jaws flat being all that is necessary toremove the effects of wear. Another case is found in the Newall measuring machine head,Fig. 2. The functions of traversing and of carrying the weight ofthe parts are here…
