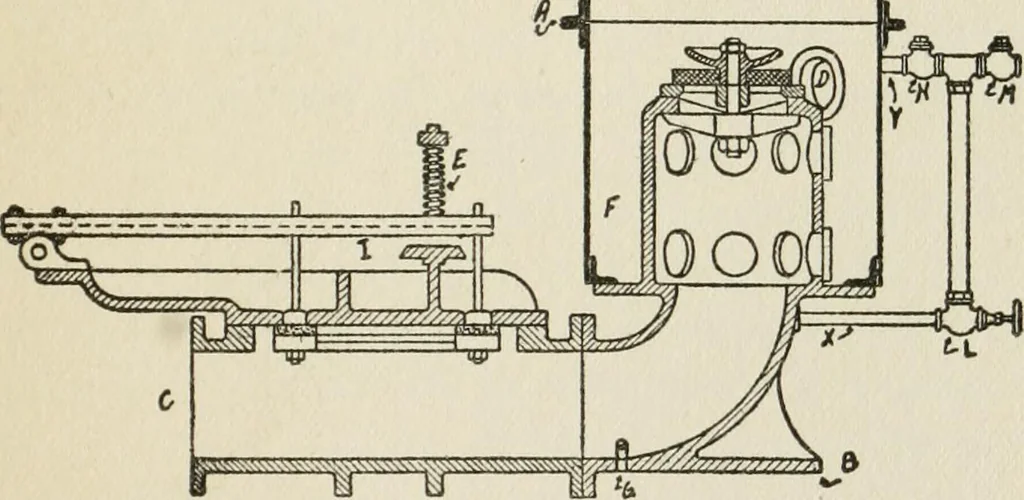

essure due to the increasingvelocity of the water is sufficient to close thevalve B. At the moment when the flow throughthis valve ceases, the inertia of the moving col-umn of water produces the so-called rammingstroke, Avhich opens the valve at C, and com- PLUMBING 299 presses the air in the… … Fig. 113. Cross-Section of Double-Acting Hydraulic Ram.Capacity, 1,400 gallons per minute; weight, 6,000 pounds. likened to the oscillations in a U-tube. At thisinstant the column of water in the drive-pipe has come to a rest; and the air-pres-sure being greater than the static head alone, 300…
