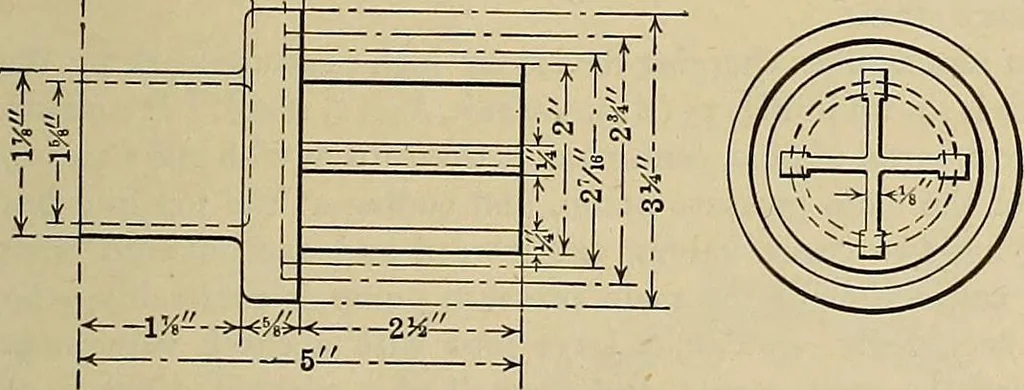

Fig. 24.- Leather Rings in Valve Seat … Fig. 25.. Leather Ring in Valve Figs. 24 and 25.—Leather sealed valves for high-pressure hydraulic service. main cylinder. A reverse operation forces the piston d down, shut-ting off the water from the main cylinder, and simultaneously openingthe exhaust via the outlet e. It will be observed that…
