Practical mechanical drawing and machine design self taught .. (1907)
Westinghouse, Charles. [from old catalog] · Chicago, F. J. Drake & co. · leaf 108

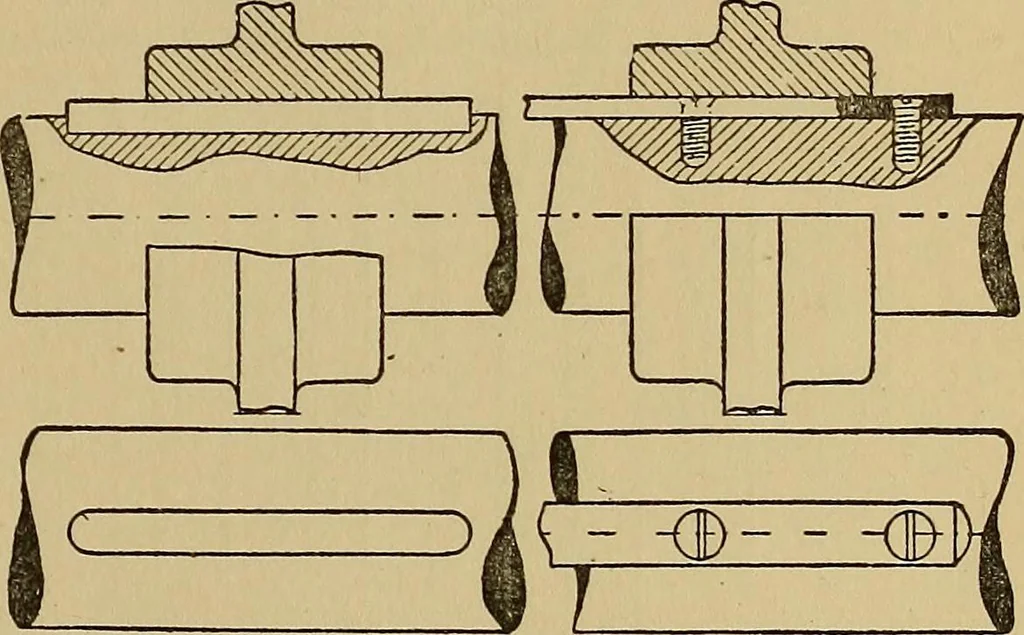

in which case it is made a sliding fit in the key-way of the shaft. But the feather-key may be fixed to the shaft and made a sliding fit in the piece car-ried by it. Examples of feather-keys which slide in the key-way of the shaft are shown in Fig. 189. In theleft-hand view the key has a projecting… … Fig. 190—Fixed Feather-keys. A in the left-hand view, namely, to ensure that thekey and the piece B remain or move together. Fig. 190 shows two examples of feather-keyswhich are fixed to the shaft. In the left-hand viewthe key is sunk into the shaft, and in the right-hand view the key is either a…
Mechanical drawing · Machine design
