Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 46

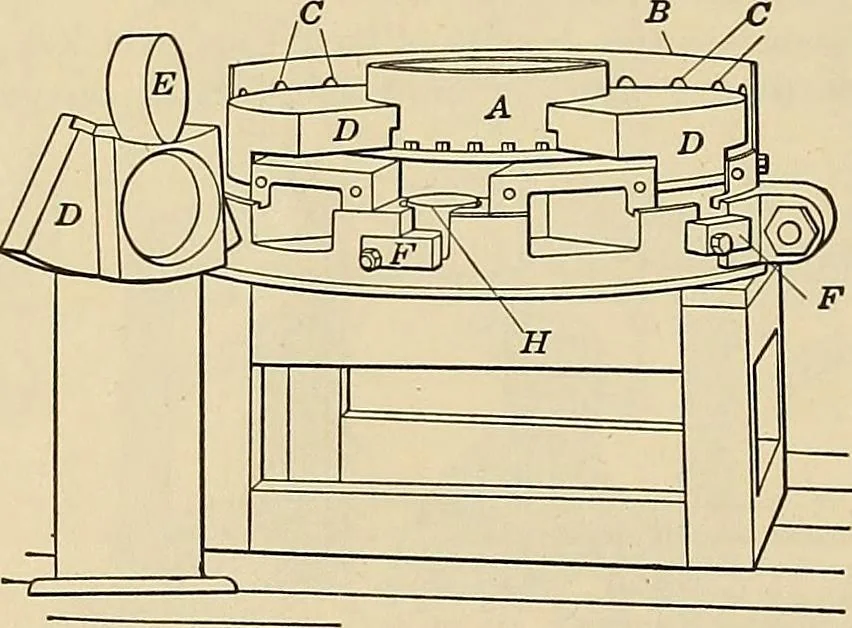

etached one at the left. A recess in the lower sideof each shoe receives a block E one end of which is spherical and restson the similar spherical end of a second block H. When in action,the segmental blocks tilt slightly and admit a film of oil betweenthemselves and the revolving step, on which… … Fig. 27.—The Kingsbury thrust bearing. These bearings carry very much higher unit pressures than theusual type of thrust bearing. Low-speed bearings on light oilsregularly carry mean pressures up to 300 lbs. per sq. in. Higherspeeds regularly carry loads up to 500 lbs. per sq. in. Heavier…
Machine design
