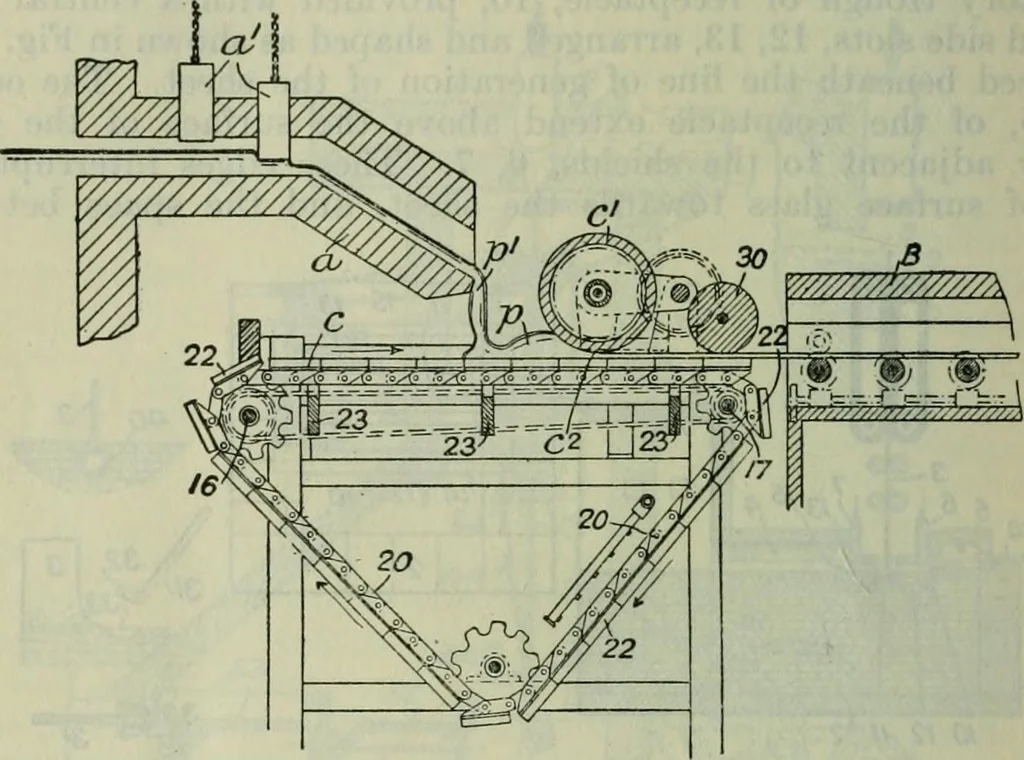

forms a pool, p, whence itpasses into the space, c2, between the band and a roller, c1. Theheight of the space, c2, is equal to the thickness of the sheet andits width greater than that of the sheet, so that the pool of metalremains unconfined in respect of its edges up to and through thespace. The… … Fig. 143. compared with the width of the strip of glass and the stream, p1,falls on to the pool and not directly on to the table. The tableconsists of plates, 22, carried by the links of chains, 20, that passover sprocket wheels, and supporting-guides, 23. The shaft, 17,of the forward sprockets is…
