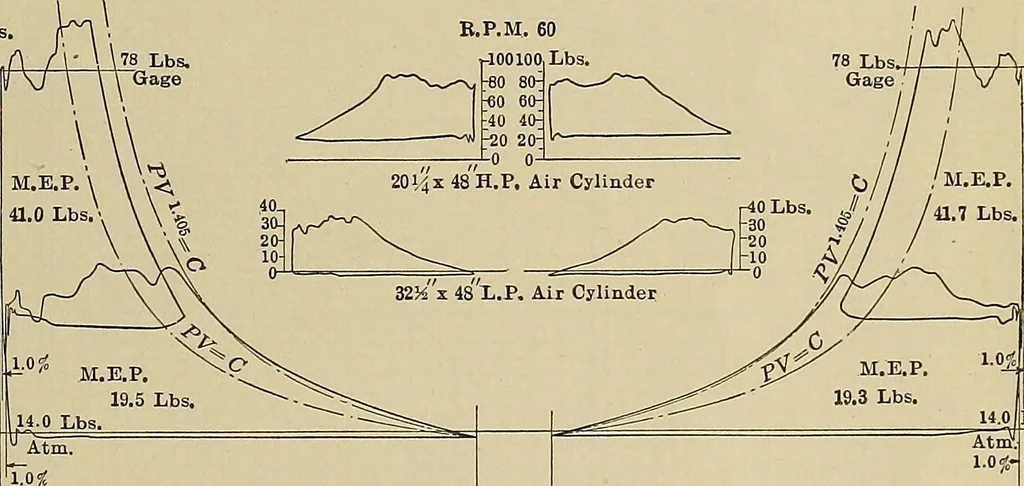

r. Mach.,June 12, 1913), Fig. 3 being for singleand Fig. 4 for two-stage compression,the assumption in the latter being thatthe intercooler reduces the air to itsinitial temperature. To use the chart. Fig. 3, for single-stage compression: Find the absolutefinal pressure on the scale at the left… … Lbs Lbs.100 80 CrankEnd Fig. E.P.M. 52 Head End
