The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 178

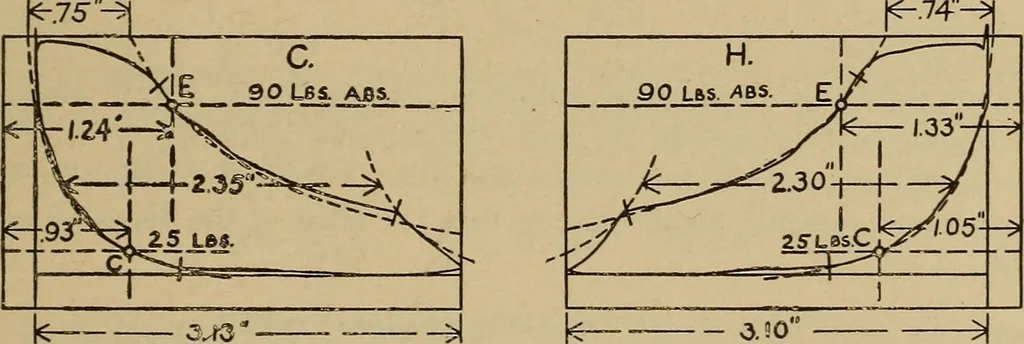

.19048 79 4901.7 28.366 12378 99 7697.7 44.547 .19439 80 5026.5 29.089 12693 100 7854.0 45.451 .19833 Example 25. — The diagrams in Fig. 84 are from a 14 in. by 15 in. engine,with 21 in. piston rod and with 8 per cent of clearance in each end, runningat 225 r.p.m. on a steam pressure of 105 lb. by… … Fig. 84. — Diagrams from a High-speed Steam Engine. The three important ^events in the steam distribution, cut-off, release,and exhaust closure or compression, are marked on the diagrams by draw-ing short cross-lines, located by eye as closely as possible. Expressed inapparent measure — see § 19…
Steam-engines · Steam-turbines
