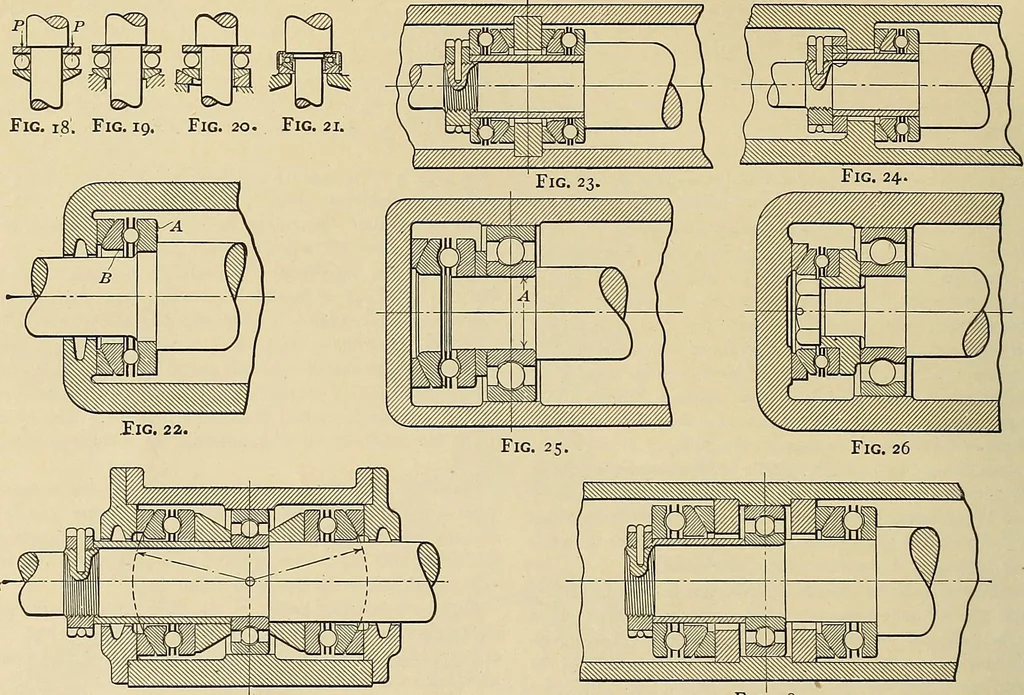

uttontallow and similar acid producers must not be employed. Collar Thrust-bearing MountingsIn collar thrust bearings, aligning washers are necessary to secure Wherever shaft deflections are liable to occiur, the thrust bearingmust have an imderlying washer, or a special aligning washer mustbe… … FiG.27, ^IG- 28. Figs. 18 to 28.—Principles and arrangements of collar thrust bearings. uniform loading of the balls. These washers frequently take theincorrect form shown in Fig. 18. One plate is convexed to rest in aconcaved aligning seat. This form is wrong in that both plates fitthe shaft and…
