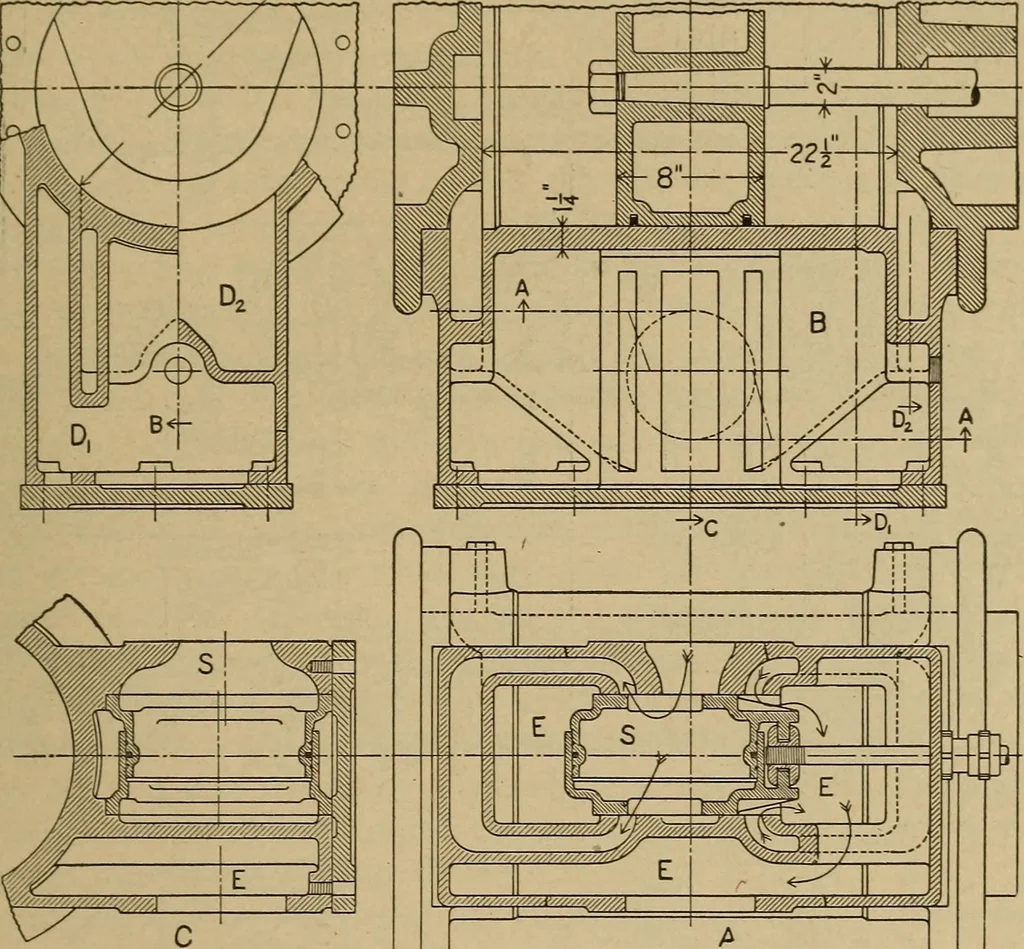

HE ENGINE. 345 are conformed to the surface of the piston, and are stiffened by radialribs on the outside. Fig. 200 shows them shallow, Fig. 203 very deep.We distinguish the full or plain outer head (at the head end) and theinner or stuffing-box head (at the crank end). In Fig. 203, with anextended… … Fig. 202, — Cylinder of 15 in. by 14 in. High-speed Engine in Fig. 2, showingdouble-seated flat valve. Scale 1 to 14. thing to make an opening large enough for the passage of a heavy bor-ing bar, then close it by a bushing or small head which carries the stuffingbox. Fig. 200 shows distinctly the…
