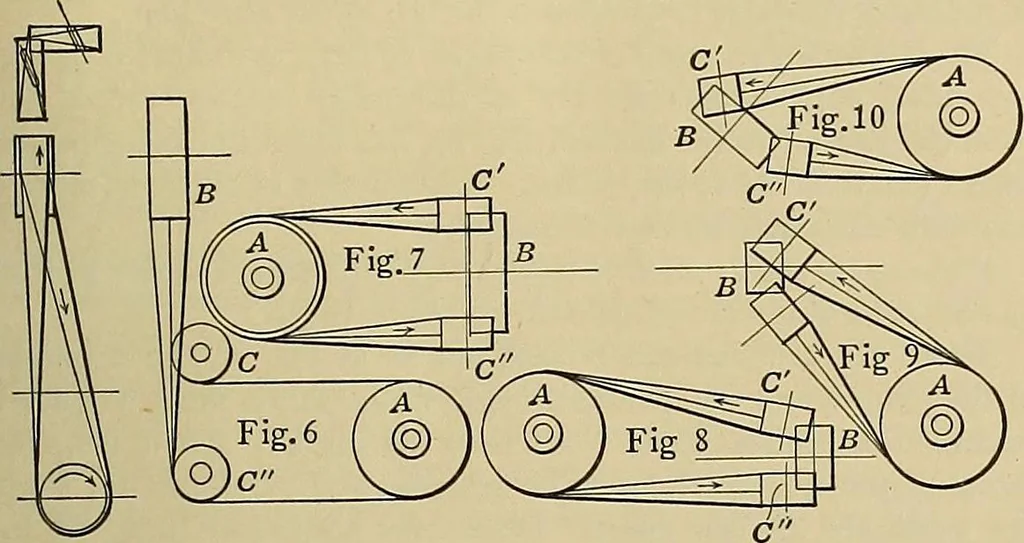

st be in the samevertical line as the similar point on the other pulley, as indicated in theillustrations. The direction in which the pulleys are to turn deter-mines which of their sides must be in line, as it is always the sides Fig. 18 shows a method of laying out the floor holes for the… … Fig. S-—Quarter Figs. 6 to 10.—Substitutes for quarter twist belt. twist belts. from which the belt leaves the pulleys which should line up. Fig. 15shows how the pulleys should be set when the lower pulley turns to theleft, as indicated by the arrow. Fig. 16 shows the setting when thelower pulley…
