The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 18

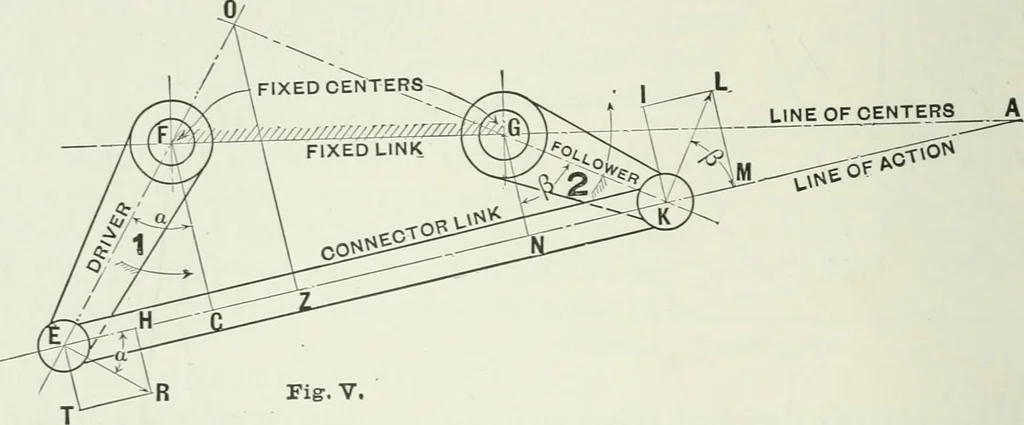

Fig-. IV. XIV INTRODUCTION. VII. Velocity Ratio as Determined by Intermediate Connectors. F and G, Fig. V, are thefixed centers of the revolving arms 1 and 2, their free ends being connected by the link EK.It is required to determine the velocity ratio between 1 and 2 for the instant shown. Peoof.… … Fig. V. longitudinal component of the motion of K in arm 2 must be KM = EH, and the linear velocity ERwill be KL. Let co^ and co.^ designate the angular velocities of arms 1 and 2, then Wj = — and cOr,= —. From tlie similar triansrles EHR and FCE, —= — Also from the similar triangfles- GK ^ EF FC ^…
Gearing
