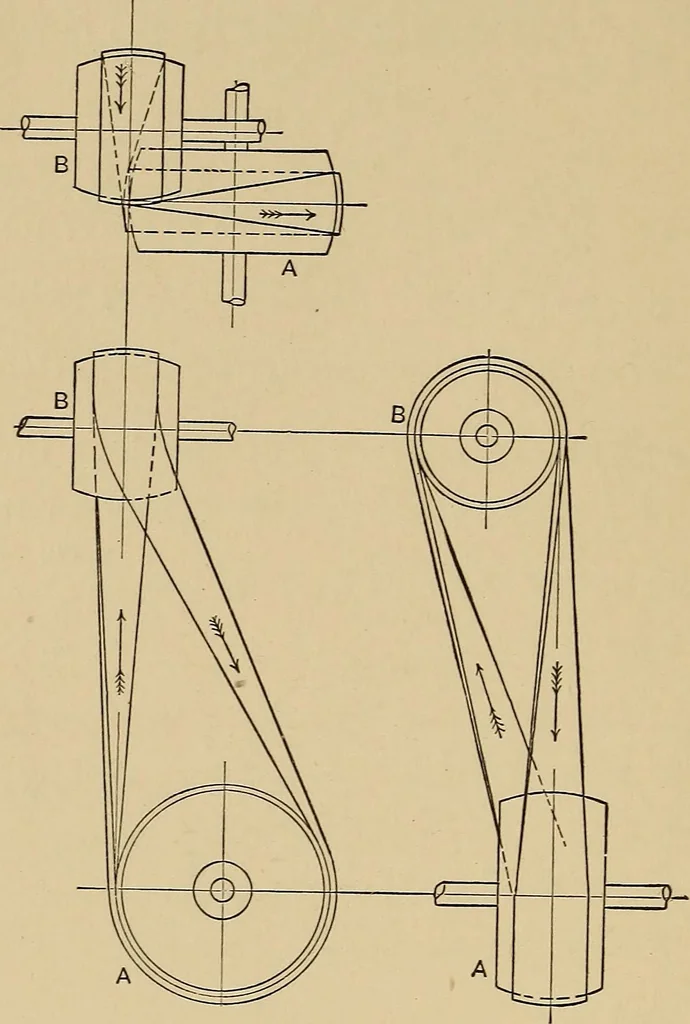

hence t = 0.29 inch. 12. Flat Belt Connections between Non-parallel Shafts. — Two non-parallel and non-intersecting shafts may be connectedby a belt, provided the pulleys are so placed that the point atwhich the belt leaves either pulley lies in the plane of the other 232 THE ELEMENTS OF POWER… … Fig. 6. be noted that the belt in passing from pulley A approachespulley 5 in a direction at right angles to the axis of pulley B,and in passing from pulley B it approaches pulley ^ in a directionat right angles to the axis of pulley A. It will be noted, too,that a plane that is tangent to the rim…
