Handbook for machine designers, shop men and draftsmen (1916)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 78

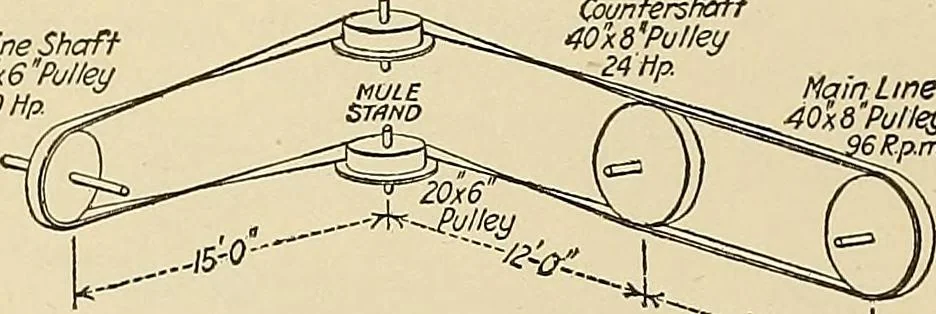

MACHINE DESIGNERS AND DRAFTSMEN reason for this, as such drives have continued in use for years andwith entire satisfaction. They may be used with great freedom,either to divide the power from a shaft or motor or to add the powerof two motors. Fig. 21, by Chas. M. Young (Amer. Mach., Apr. i,1915),… … MainlineAOlaPuiley^ i6R.p.m. , 20/6, ,--rK-Julley Fig. 23.—Combined tandem and right angle drive. usual arrangement, the calculations being naturally based on thepulleys carrying one belt. In the case of Fig. 22 the pulley sizesmust be carefully determined to give the proper speeds to the motorsand…
Machine design
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
