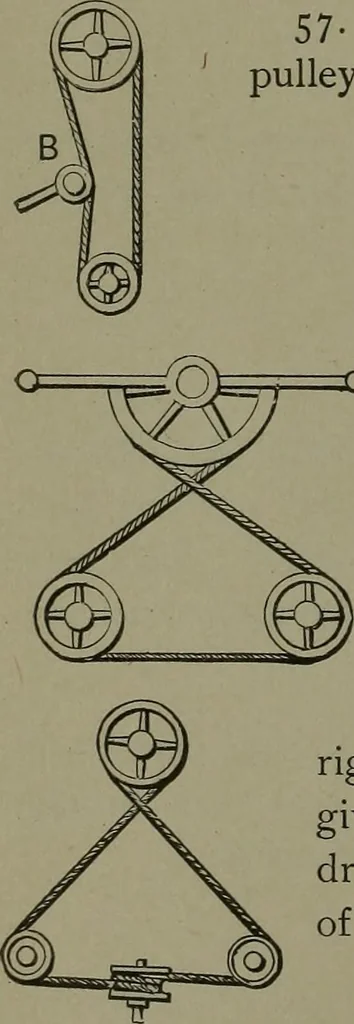

n 53. STEERING GEAR.—A hand wheel and drum on a shaft, carrying a rope rove throughguide pulleys and attached to the tiller. 54. JUMPING MOTION given to a weight,or other body, by a pin wheel and bell-cranklever. 30 TRANSMISSION OF POWER. M. 55. ROPE SPROCKET WHEEL, several modi-fications of which… … 57. ROPE TRANSMISSION, with a tighteningpulley, B. O 58. VIBRATORY MOTION to two shafts, transmitted from the rocking of a lever armand sector.
