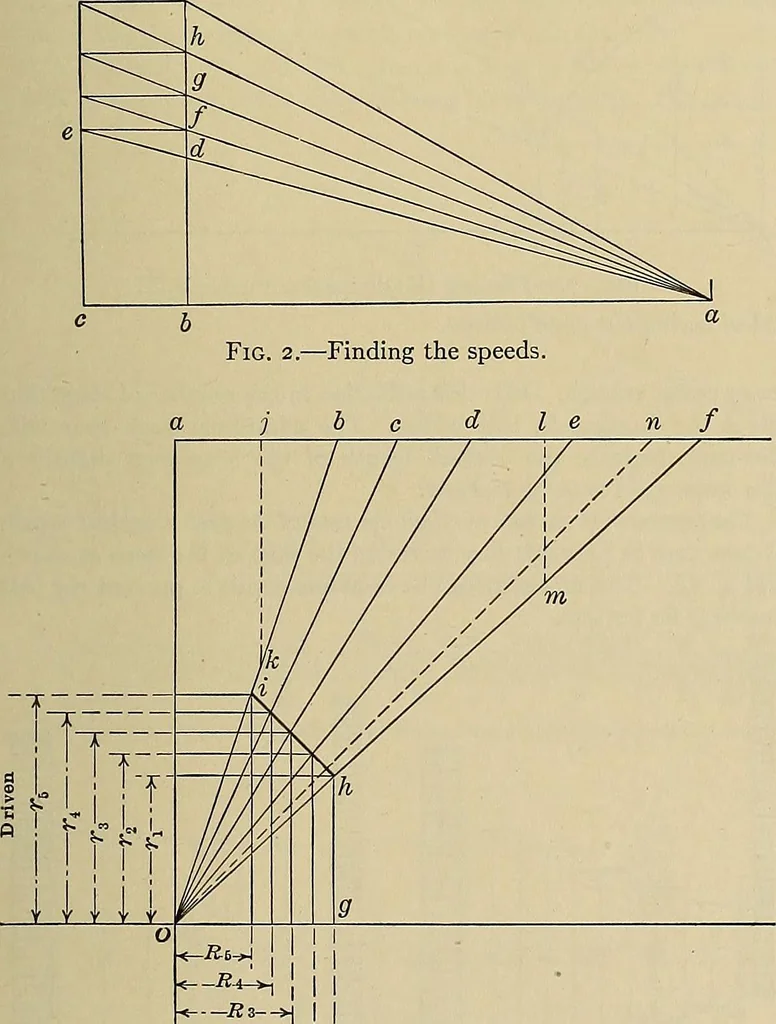

ale, giving ab,ac, ad, etc. Draw a vertical aO and make aO equal to the middlespeed, ad. Draw hO, cO, dO, etc.; lay down Ri equal to the radius ofthe largest step and draw gA. Through h, the intersection of thehighest speed line Oj with gh, draw hi at an angle of 45 deg. NowRiTi, RiTi, Rsrs, etc.,… … Fig. 5-- —Ri—>1 —Ri—^ R^-J^Drivers -Finding the diameters for Cases I and II. Unequal coneshaving either an odd or an even number of steps. In the case of unequal cones, two mating steps are naturally knownand are used to locate O as in Fig. s: Makej^ equal to the radius ofthe largest driven…
