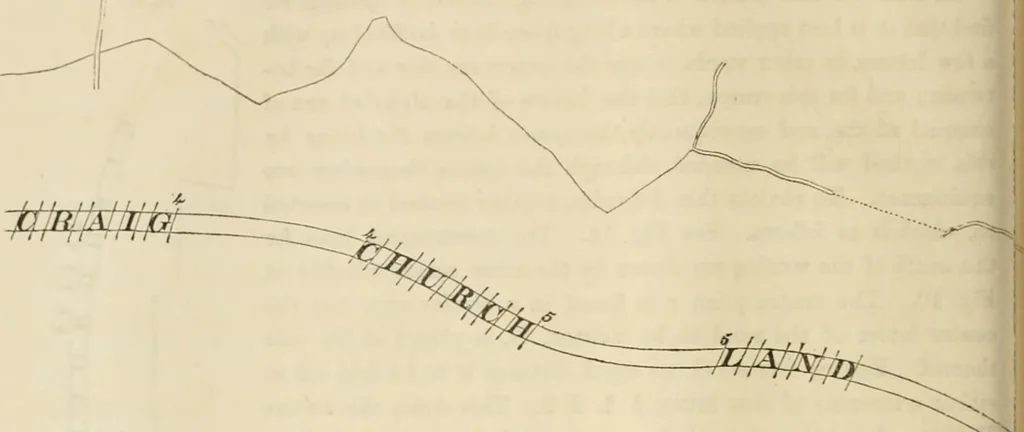

rm desired, and placing it with its edge on the paper alongside the crooked boundary ruler must be held in this position, while another person rules or marks with a pencil wnfng. along it. In this way curves of all shapes may be formed with the greatest ease, and The elastic How to form curved uneB… … In example Fig. 13, the shape of the curved line of writing is adapted to the shaprof the boundary, instead of forming a regular course, as shown in Fig. 9. The centreof the letter U is made the centre of the line of wi-iting. The space between thewords 4 4, 5 5, is equal to the ftdl width of six…
