Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U. S. seacoast defenses .. (1904)

United States. War Dept · Washington, Govt. print. off. · leaf 27

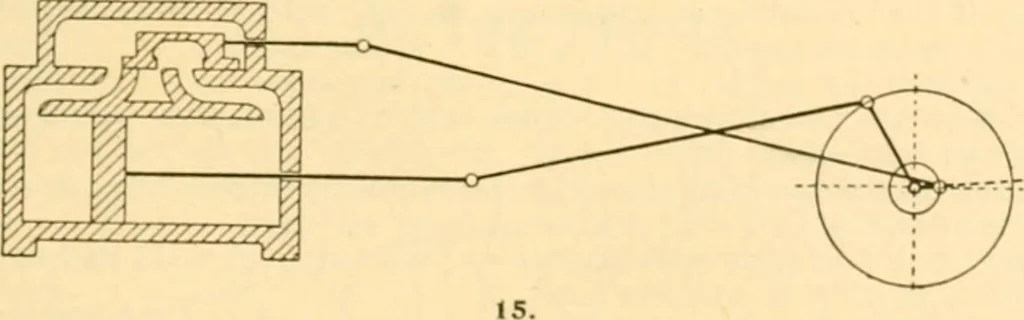

An illustration from Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U. S. seacoast defenses .., 1904, leaf 27 — In fig. 15 steam port is full open. Eccentric arm is at crank dead center. … In fig. 16 steam is cut off Pressure on piston will now be due to expansiononly of the steam in the cylinder. Eccentric makes nearlv the same angle withvertical through O. as at admission.

Electric machinery · Searchlights · Coast defenses
