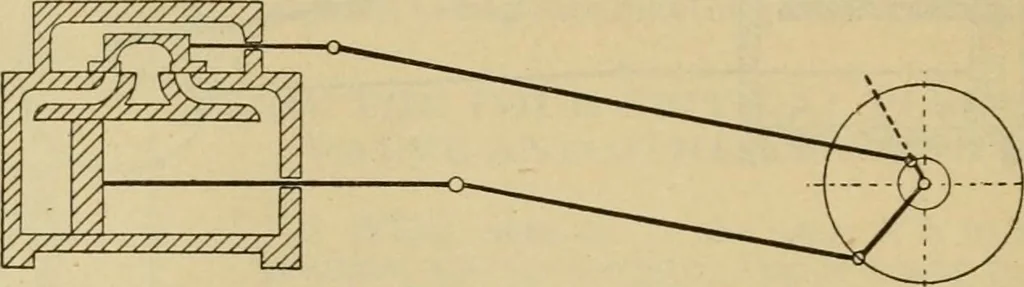

In fig. 18 inside edge of valve going to right has reached the ports inside edge,and compression of steam in the cylinder follows. Eccentric makes about thesame angle with vertical through O as at release. Admission (fig. 13) next follows, and so on, … 18. (E) TO CONSTRUCT ACCURATEirr IN ONE FIGURE (19)THE FOUR CRITICAL POSITIONS. Given, travel = 8 inches; steam lap = 1^ inches: lead = ^^ inch, and exhaustlap = i inch. On H i = 3 inches, draw eccentrics circle in i n: outside, cranks circle 311N.O m is the eccentric arms position at valves mid…
