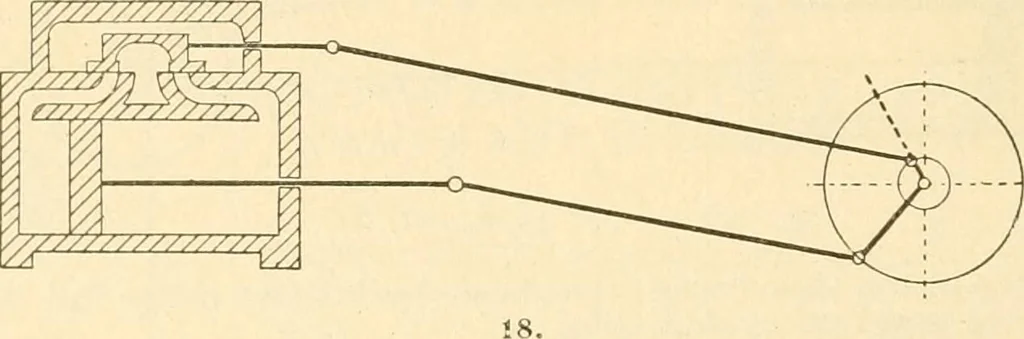

17. In fig. 18 inside edge of valve going to right has reached the ports inside edge,and compression of steam in the cylinder follows. Eccentric makes about thesame angle w^ith vertical through O as at release. Admission (fig. 13) next follows, and so on. … (E) TO CONSTRUCT ACCURATEIY I:N^ ONE FIGURE (19)THE FOUR CRITICAL POSITIONS. Given, travel = 3 inches; steam lap = li inches; lead = ^l inch, and exhaustlap = i inch. On Hi = S inches, draw eccentrics circle m i n; outside, cranks circle MIN.O m is the eccentric arms position at valves mid travel.…
