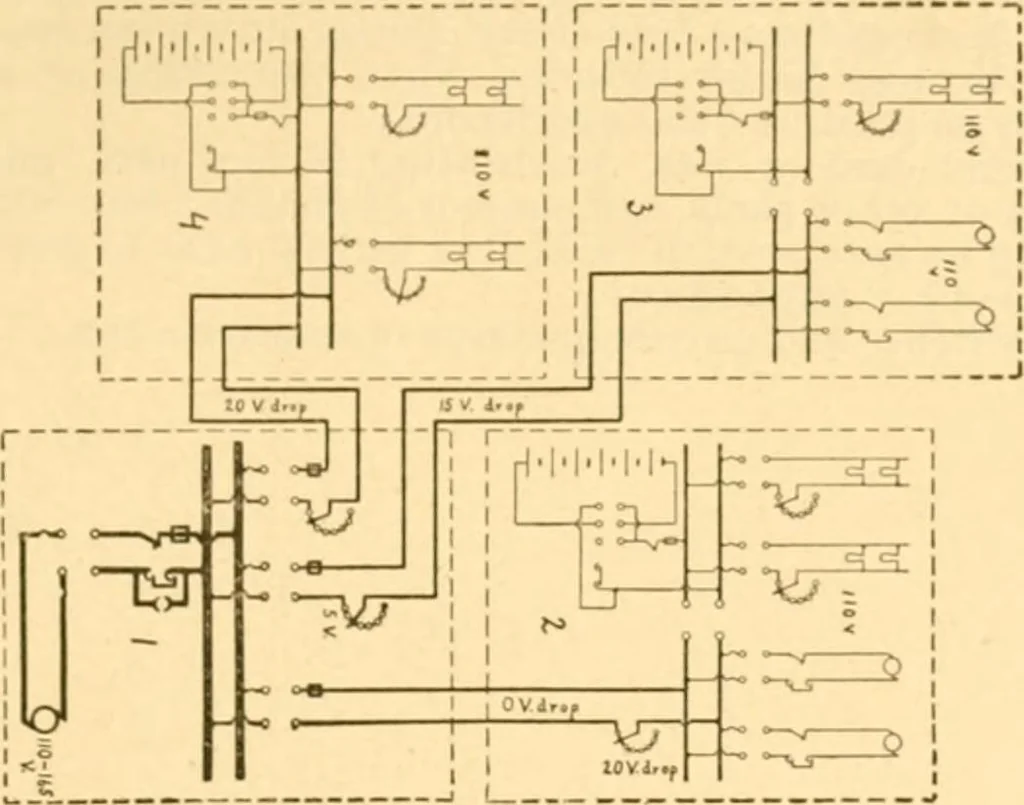

87. Key West Switchboard. THE SWITCHBOAKl). 63 (F) THE c;oIjI>kn gate board. Tlie Goldon Ciatf> board (fig. 88) distrihutes current to three points, 1,500 and2.000 feet apart, eaeh having its own battery for a reserve. The generator andNo. 2 stations are together. Battery and himpscan be… … 88. Qolden Gate Switchboard. (G) SAVnTClIBOARD ARRANGEMENT. The switchboard arrangement in fig. 89 for dynamo, single ])attery, with 15end active cells and 100 lamps, is economical. It fialfills the four conditions andthe djaiamo and battery can b(» placed in parallel to supply 400 lamps for…
