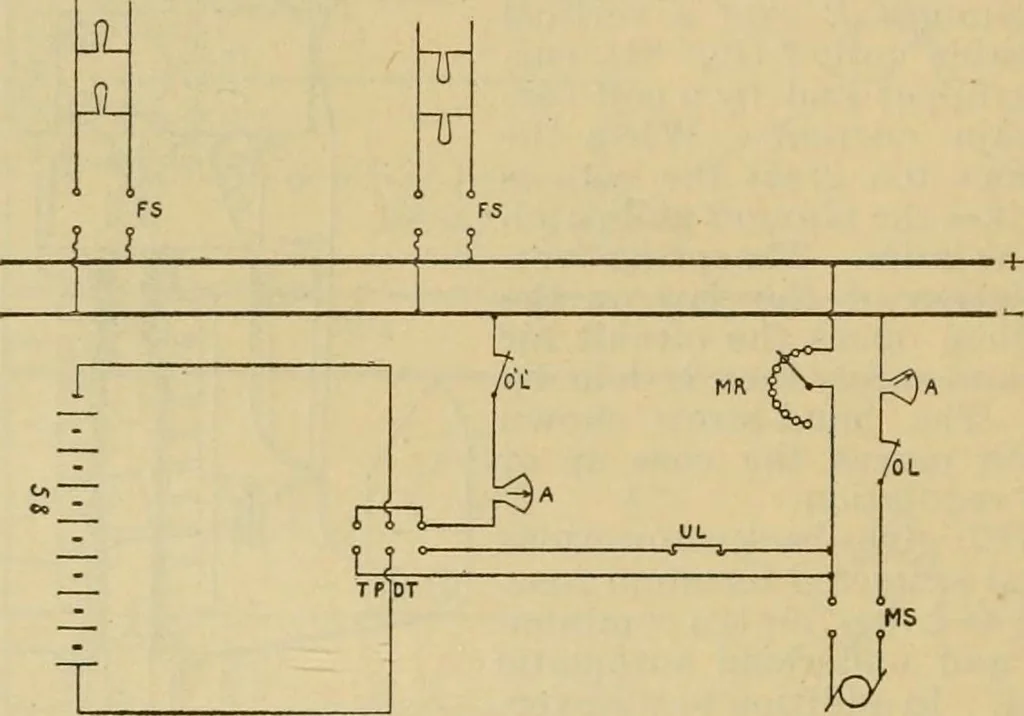

ery reserve, requires little apparatias,loses very little energy in regulation, gives little chance for accident, and it issimple. Lamps are 110 volt; dynamo, 110 to 150 volts; 58 cells charged and dis-charged in series vary from 110 to 145 volts. 1. Dynamo to light lamps—closeO L, MS, and FS only;… … 86. Preble Switchboard. (E) KEY WEST SWITCHBOARD. The relative sizes of wires, fuses, switches, etc., and the divided bus bars areshown in fig. 87. A shunt switch on the dynamo to the series field may be openedto raise the voltage. The ten end cells, active or nonactive, may be gradually added or…
