Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U.S. seacoast defenses (1902)
United States. War Dept, Anderson, George Lucius, 1849-1934 · Washington, Govt. Print. Off. · leaf 29

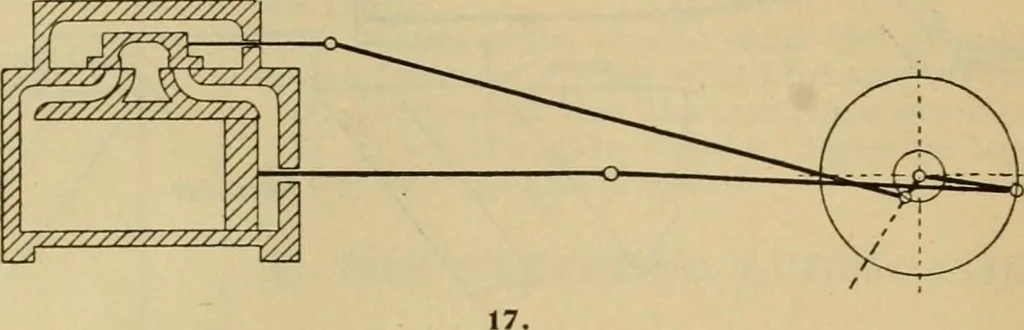

20 HANDBOOK FOR ELECTRICIANS. In fig. 17 inside edge of valve going to left has reached ports inside edge.Release of steam or its exhaust to atmosphere begins. … In fig. 18 inside edge of valve going to right has reached the ports inside edge,and compression of steam in the cylinder follows. Eccentric makes about thesame angle with vertical through O as at release. Admission (fig. 13) next follows, and so on,
Electric machinery · Searchlights · Coast defenses
