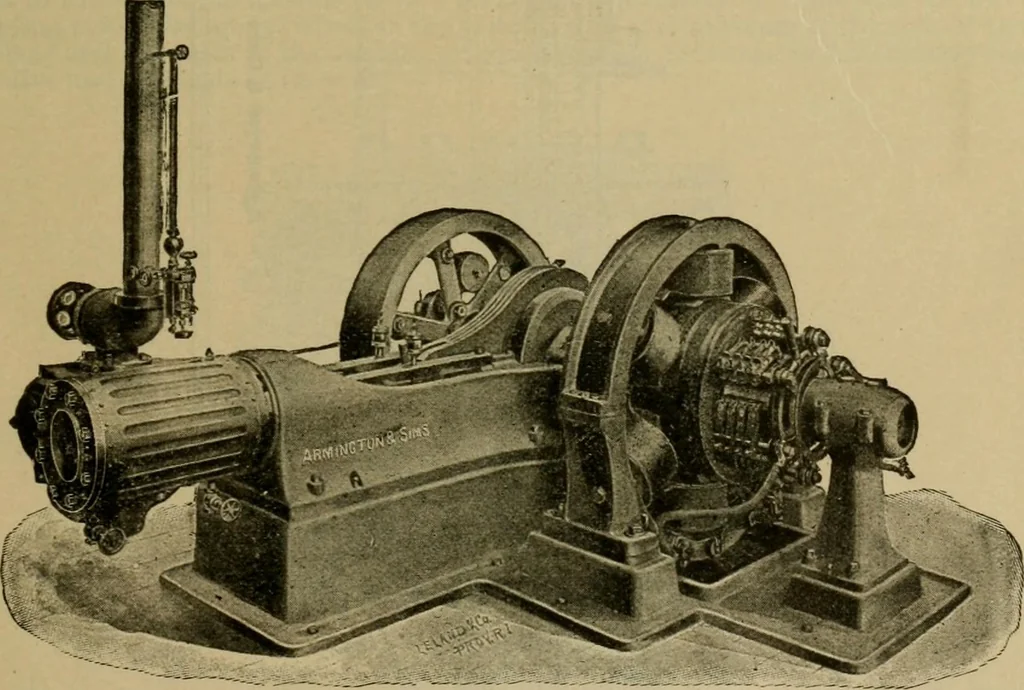

n replace bya shim gauged to the same thickness and screw the nuts home. If the lead wire is thicker at one end, the shim will be made the same. 10. To set a common slide valve, is to make the leads at both ports equal, andthe full-port openings as nearly equal as possible. Leads are made equal… … 23. Anninsrton & Sims D. C. Set. (a) Take off the steam-chest cover (fig. 23), give all connections a close workingfit, place crank at either dead center, and measure the lead for each port; if theleads are equal to each other and to the amount given by the builder, the valveis properly set. If…
