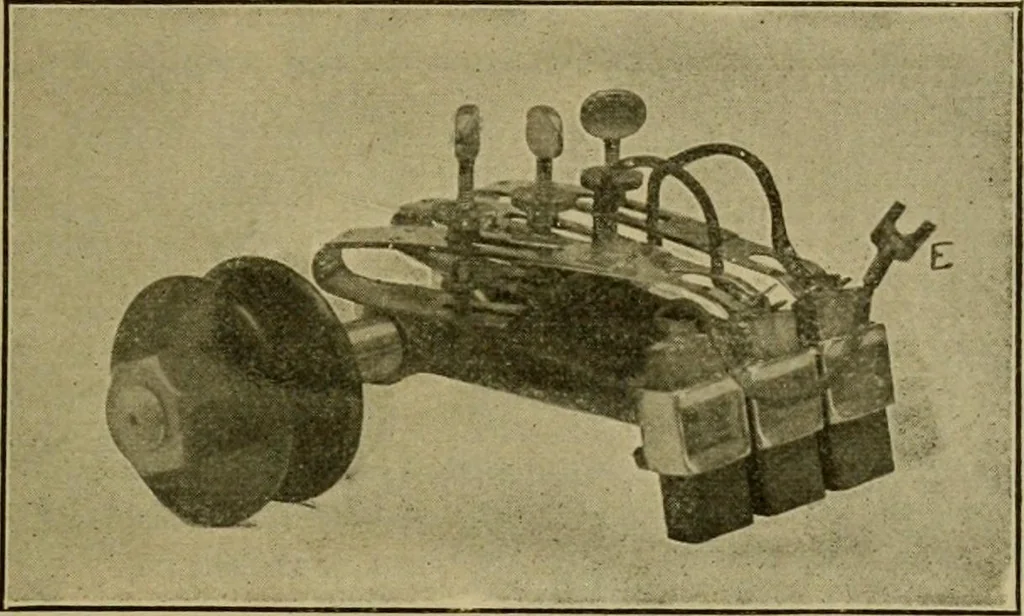

le, with brushes raised), and kept movinglaterally back and forth on the commutator, will usually remedy the fault. Ifthis does not suffice, it will then be necessary to tighten up the segments andturn them off true. A machine tool will not leave the surface smooth enoughto give perfectly… … 72. The Brush Ready for Removal. 5. Starting and running the set.—(a) Before starting, see that all screws andnuts are tight, that the oil cups are filled with oil free from dirt and grit,and that all working parts are well oiled. The feed should then be adjusted togive the required amount of oil…
