Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U.S. seacoast defenses (1902)
United States. War Dept, Anderson, George Lucius, 1849-1934 · Washington, Govt. Print. Off. · leaf 94

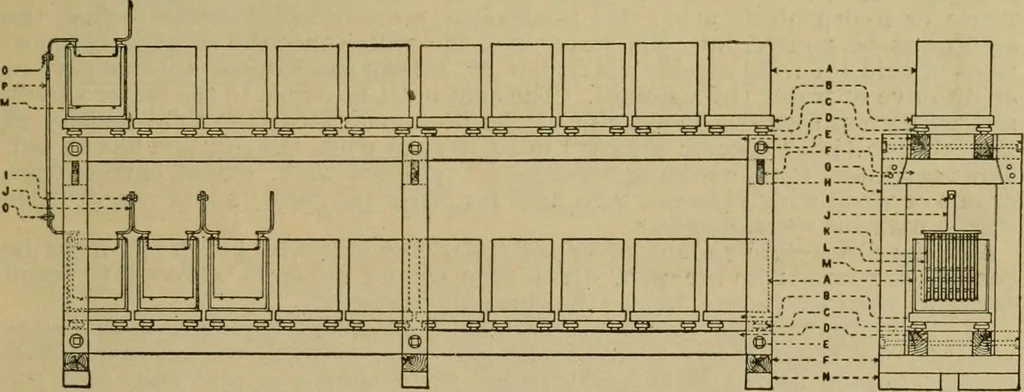

of two stringers, as shown for the single rowof cells. •4. The battery room should be so located or arranged that the temperaturewill be moderate and the air dry. If the room is damp there is danger of leak-age from grounds and solution running over from absoiption. 5. Usually, natural ventilation… … 91. Method of Mounting. Working Plan 6f Frame. .\ Glass jar. B Wood tray. C Glass insulator. D Stringer. E Iron bolt. F Crosspiece. G Wood dowel pin. H Post. I Leail-covered bolt connector. J Lead strap lug. K Positive plate. L Jfegative plate. M Eulibcr ring separator. N Aitrili.-d brick. 0 Liiiil…
