Handbook of construction plant, its cost and efficiency (1914)
Dana, Richard Turner, 1876-1928 · Chicago, The M. C. Clark Publishing Co. · leaf 335

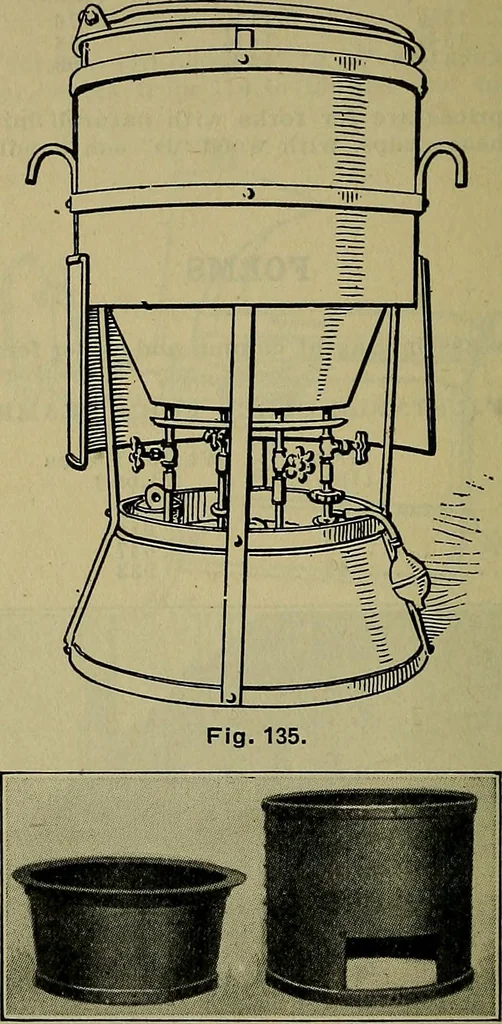

Fig. 134. 330 HANDBOOK OF CONSTRUCTION PLANT FURNACES AND KETTLES A gasoline lead or leadite furnace (Fig. 135), having a meltingpot capacity of 325 lbs. of lead or 50 lbs. of leadite, weighs,crated, 170 lbs., and costs $50.00. … Fig. 136. Asphalt and Tar Kettles. Asphalt and tar kettles (Fig. 136) of very heavy steel plate,reinforced with angle irons, for burning wood or coal, cost asfollows: Kettle, 38 ins. diameter, 21 ins. deep $21.00 Mantle, 40 ins. diameter, 36 ins. deep 18.75 Mantle, with door and grate for burning…
Contractors' operations · Building
