Handbook of construction plant, its cost and efficiency (1918)
Dana, Richard Turner, 1876-1928 · New York, McGraw-Hill book company, inc., [etc., etc.] · leaf 296

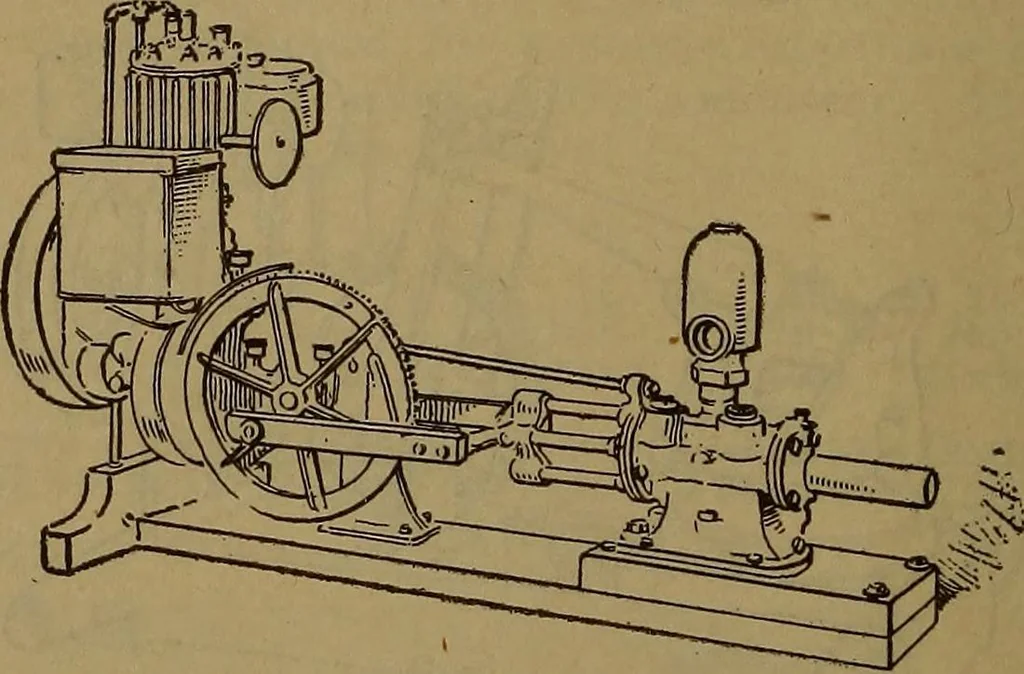

104. The Grindstone. 3 in. pump, $108.00; 4 in. pump, $125.00. The engine withoutpump or hose, but with frame a.nd all connections, costs $90.00. 292 HANDBOOK OF CONSTRUCTION PLANT The same machine equipped with a double acting force pumpcosts: 5 in. pump, $105.00; 3 in. pump, $100.00; engine with… … Fig. 105. The Pressure System. I A very simple gasoline engine is shown in Figure 106. It isof the open-jacket water cooling system, gas-tank in iron base,governor of the inertia type, make and break ignition, and theequipment includes muflier, coil, wrenches, oil can, etc.
Contractors' operations · Building
