Handbook of construction plant, its cost and efficiency (1918)
Dana, Richard Turner, 1876-1928 · New York, McGraw-Hill book company, inc., [etc., etc.] · leaf 79

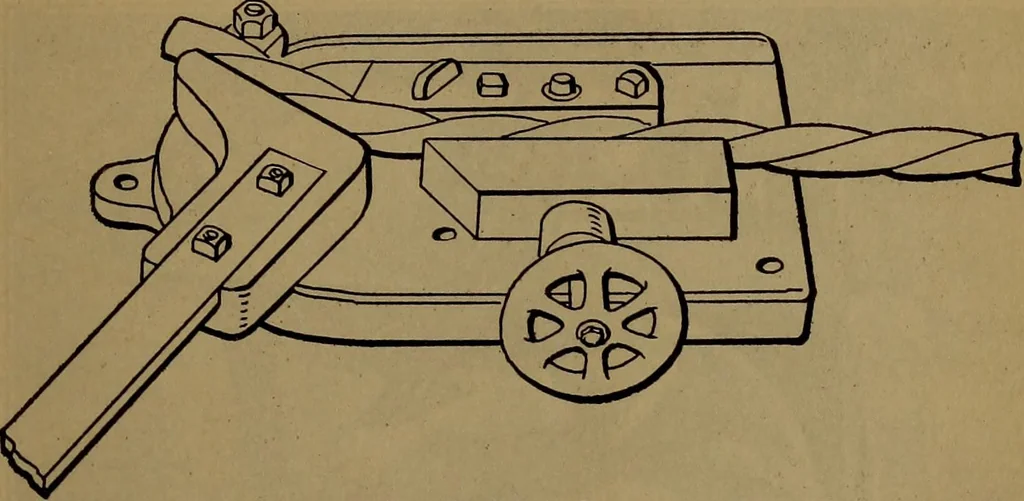

Fig. 24. BAR BENDERS 75 % in. to 1% in., weight 175 lbs., price $58. Both of thesemachines will bend to any angle and are fastened by bolts to aplank or beam and operated by one or more men. A very strong bar bender is shown in Fig. 25. This machine isconstructed entirely of steel and is bolted to… … Patented.Fig. 25. Acme Bar Bender. or beam. It is adapted to any size bar by turning the handwheel and to any curve by loosening one nut; weight 200 lbs.,price $85. A large portable machine mounted on a truck is illustratedin Fig. 26. It will bend rods of mild or high carbon steel
Contractors' operations · Building
